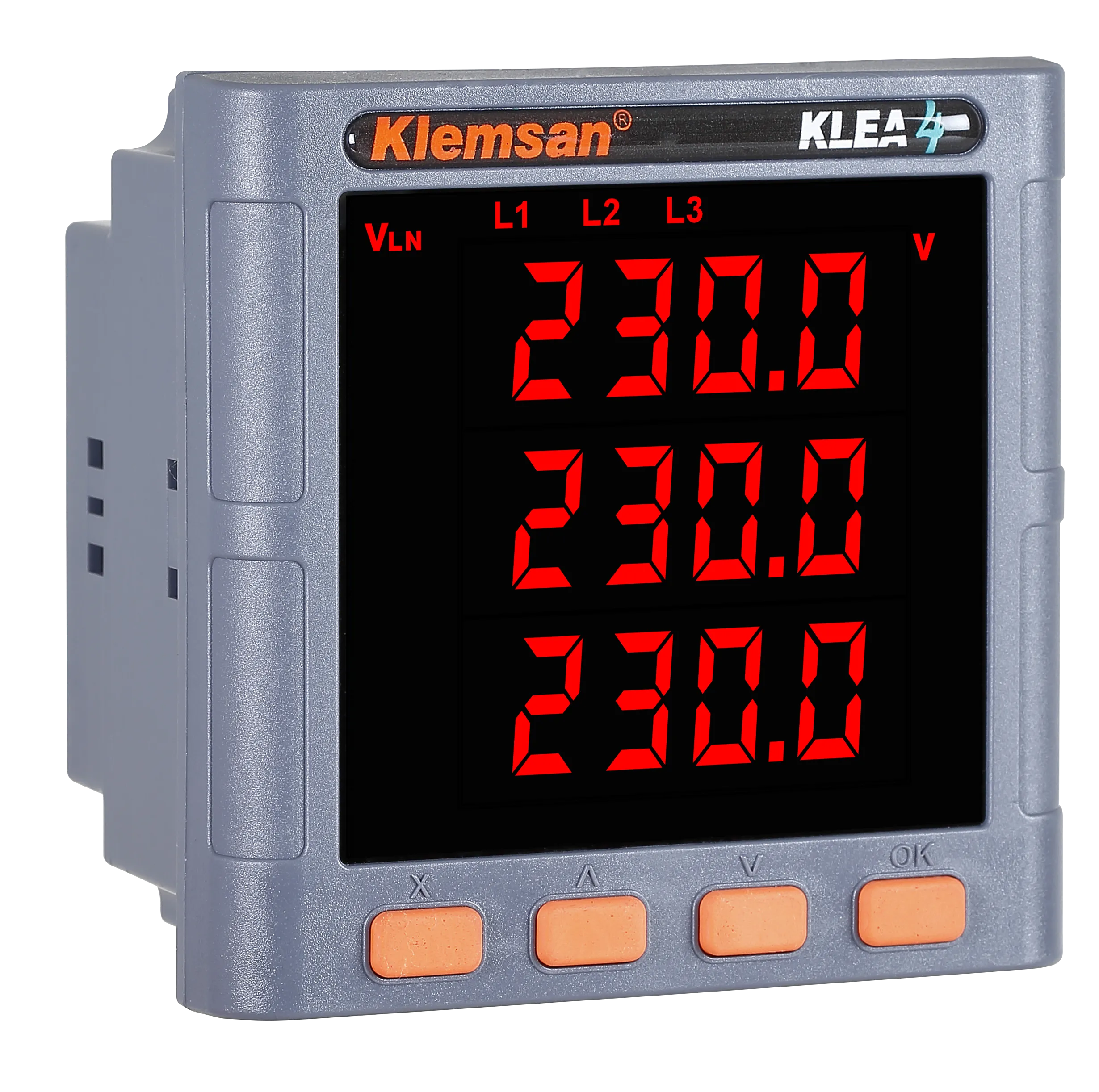

KLEA 411R
3Ø Energy Analyzer
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606706
Packing Unit
1 pcs.
Customs Tariff No.
903032009011
Product Description
3Ø Energy Analyzer
Technical Information
general
Lcd Screen
-
Language Support
English
Password Protection
+
Networks
TT, TN, IT
Signal Waveforms
-
Connection Type
3P4W, 3P3W
Battery
-
Real Time Clock
-
Demand Period
1-60 min. adjustable.
Packaging Quantity
1
Minmax Data
+
Demand Data
+
Ghost Screen
+
Screen Refresh Period
1sn
energy-measurement
3 Phase Energy Measurement
+
Number Of Tariffs
2
1 Energy Measurement
+
Number Of Reactive Measurement Zones
2
current-measurement-input
Measuring Range
50mA-6A AC
Overvoltage Category
300 V Cat II
Voltage Fluctuation Measurement
<2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100 A for 1 sec
voltage-measurement-input
Overvoltage Category
300 V Cat III
Measuring Range L N
10-300 Vrms
Measuring Range L L
17-500 Vrms
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.1 VA
power-quality-measurements
Harmonic Measurement Current And Voltage
31 e kadar
Thdi
+
Thdv
+
measuring-accuracy---iec-61557-12
Total Active Power
Class 1
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.2
Current
Class 0.5
Neutral Current
Class 0.5
Voltage
Class 0.5
Power Factor
Class 0.2
Thdv Thdi
Class 1
Total Apparent Power
Class 1
Total Active Energy
Class 1
measuring-accuracy---iec-62053-22
Total Active Energy
Class 1
measuring-accuracy---iec-62053-23
Total Reactive Energy
Class 2
power-supply
Voltage
85-300V AC - 85-300V DC
Frequency
45-65Hz
Consumption
<3VA AC - <2.5W DC
mechanical-properties
Protection Class
IP54
Mounting Type
Panel Mount
environmental-conditions
Operating Temperature
-25°C +70°C
Storage Temperature
-30°C +80°C
Relative Humidity Non Condensing
Max. 95% (no condensation)
communication
Protocol
Modbus RTU
Baud Rate
1200-57600
Parity
Odd, Even, None
Stop Bit
1
Slave Id
1-247
Isolation
2750V RMS
other-measurements
Operating Time Counter
+
Open Time Counter
+
Power Failure Counter
+
basic-electrical-measurements
Current
+
Voltage
+
Frequency
+
Active Power
+
Reactive Power
+
Apparent Power
+
Power Factor
+
Cos
+
cable-cross-sections-power-supply-voltage-relay
Multi Core
2.5mm² - 14AWG
Single Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
cable-cross-sections-current
Multi Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
Single Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
cable-cross-sections-digital-inputoutput-rs485-analog-output
Multi Core
1.5mm² - 16AWG
Single Core
1.5 mm²-16 AWG, 2x0.75 mm²- 2x18 AWG
Certificates
CE
UKCA
UL
