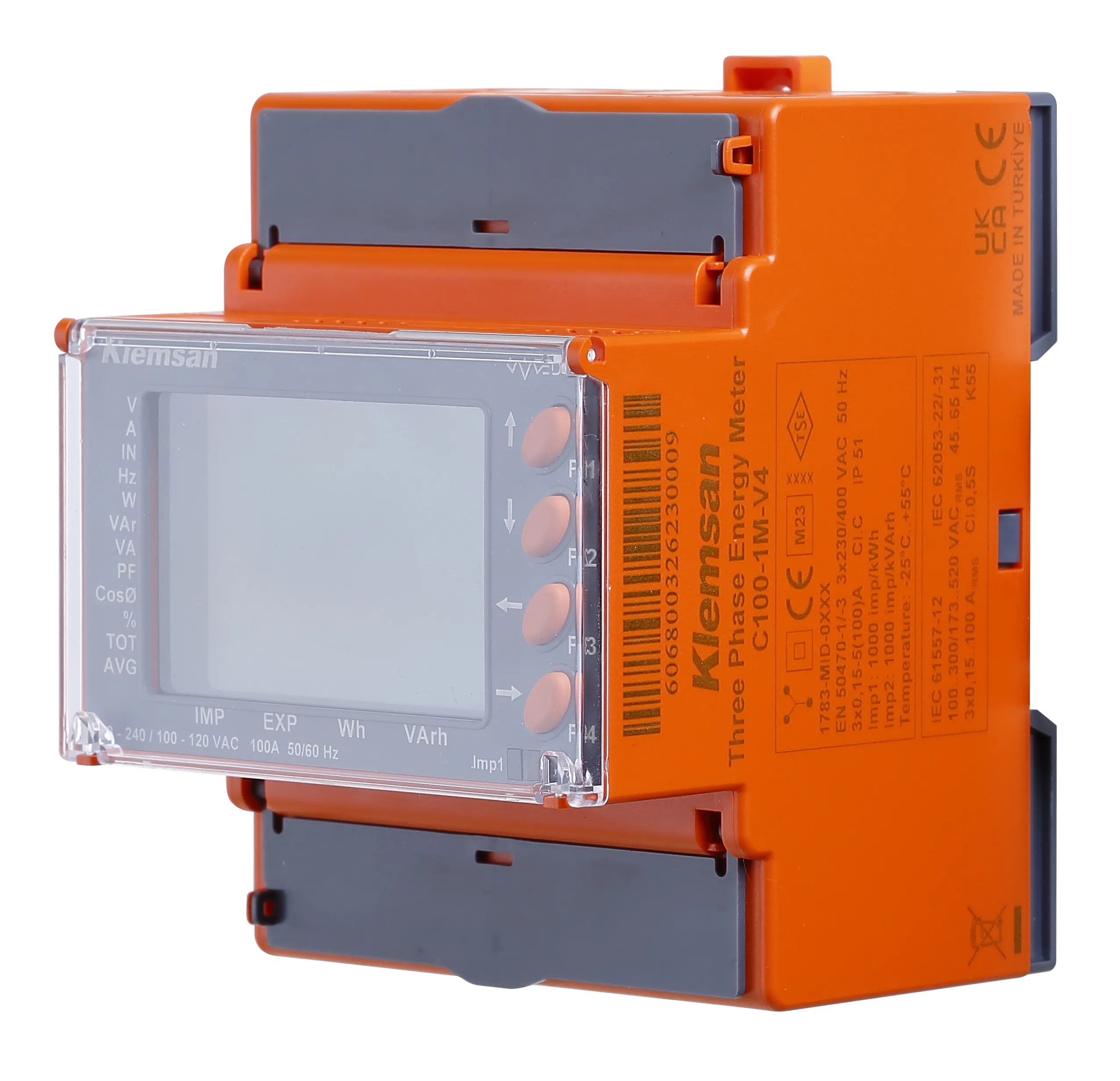

C100-1M-V4
3Ø MID Energy Meter
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606800
Packing Unit
1 pcs.
Customs Tariff No.
903032009011
Weight per piece (inc. packing)
0.12 kg.
Product Description
3Ø MID Energy Meter
Technical Information
GENERAL
Connection Type
3P4W
Real-Time Clock
+
Current Connection Type
Direkt Baglantili (100A ya kadar)
MECHANICAL SPECIFICATIONS
Weight (g)
120
Protection Class
IP20
Mounting Method
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-115200
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Insulation
2750V RMS
DIGITAL OUTPUT
Frequency
5-30 VDC
Number of Inputs
2 (1 sabit, 1 ayarlanabilir)
Switched Voltage Range
Transistor
Insulation
3750 Vrms
DIGITAL INPUT
Number of Inputs
2
Input Type
Dry Contact
Insulation
3750 Vrms
CURRENT MEASUREMENT INPUT
Measurement Range
3x 0,25 .. 100A
ENERGY MEASUREMENT
Number of Tariffs
2
Number of Sub-Tariffs
4
Number of Reactive Measurement Quadrants
2
Energy Measurement Type
Import & Export kWh-kVArh
Partial Counter
+
Balance Energy
+
VOLTAGE MEASUREMENT INPUT
L-N Measurement Range
100-300V AC
L-L Measurement Range
173-520
POWER QUALITY MEASUREMENTS
THDi
+
THDv
+
BASIC ELECTRICAL MEASUREMENTS
Current
+
Voltage
+
Frequency
+
Active Power
+
Reactive Power
+
Apparent Power
+
MEASUREMENT CLASS
EN 50470
Class B
MEASUREMENT
Demand
+
LED PULSE OUTPUT
kWh
+
kvarh
+
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
Certificates
CE
UKCA
UL
