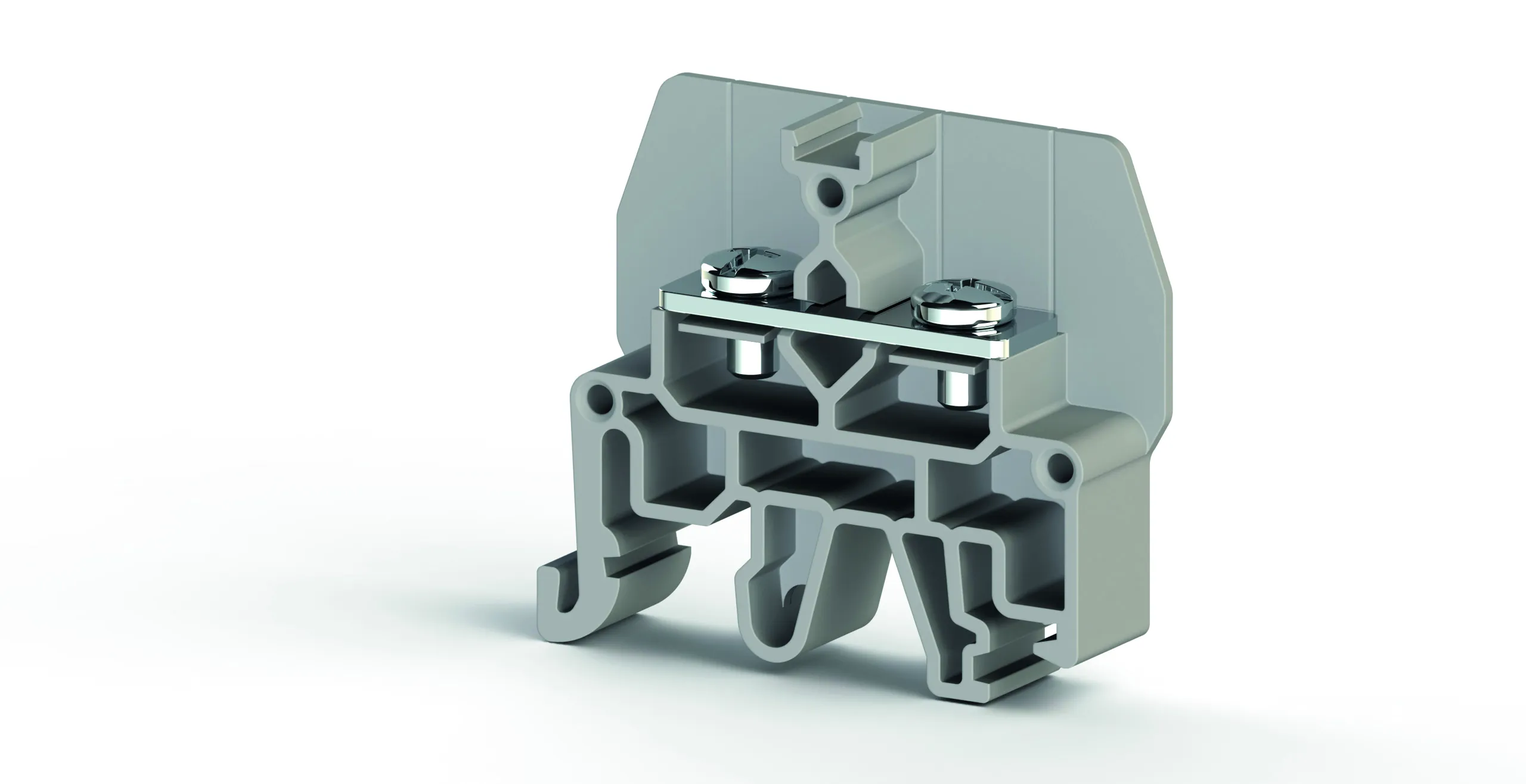

CPB 6 Gri
6 mm² 1 input 1 output fork type plug in terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50 ad
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
326809
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0088 kg.
Product Description
6 mm² 1 input 1 output fork type plug in terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
3
Insulation Material Group
1
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
41 A
Nominal Voltage
800 V
CONNECTION DATA
Connection Type
Civata baglanti / Bolt connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
6 mm²
Tightening Torque Min
0,8 Nm
Tightening Torque Max
1,2 Nm
DIMENSIONS
Width
9,50 mm
Length
42,80 mm
Height Mr 35x75
38,50 mm
Height MR 35x15
46,00 mm
Height Mr 32
43,10 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 10-20
Nominal Current
40 A
Nominal Voltage
600 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561240
IKT-D 4 (0,8 x Ø4,0)
Terminal Thermal Printer Labels
Product Code: 810750
D-NS 8x6
Terminal Blocks
Product Code: 505330
DG 6/5
Cover
Product Code: 450289
NPP/CPB 6 Grey
Screw Type Cross Connector
Rails
Product Code: 500101
MR 32 (1mt)
Product Code: 500102
MR 32 (2mt)
