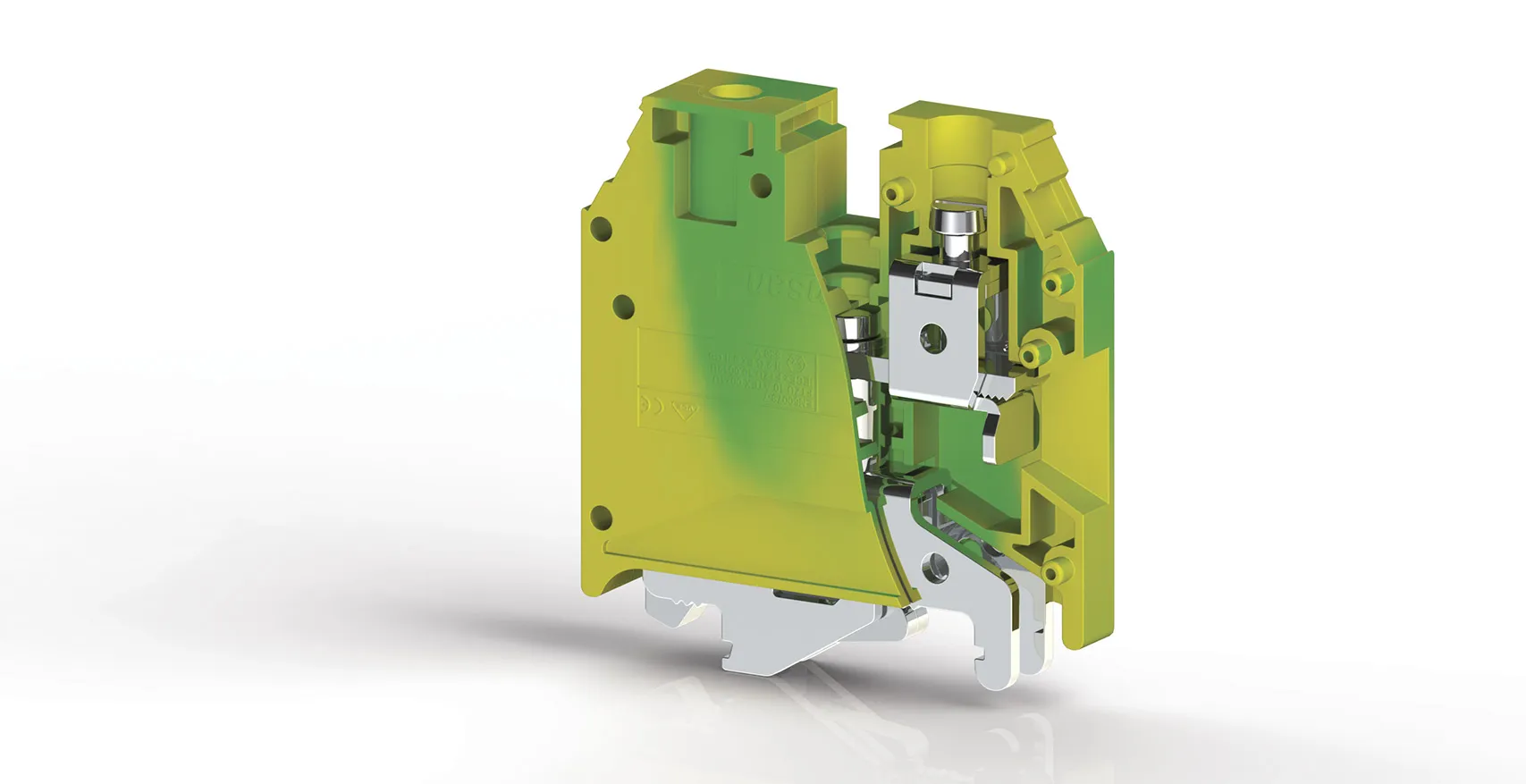

AVK 16TRD Yellow-Green
16mm² Screw type,single deck earth terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
334200
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0606 kg.
Product Description
16mm² Screw type,single deck earth terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Note
Observe the current carrying capacity of the DIN rails.
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
25 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
4 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
1,5 mm²
Multi-core max. conductor cross-section with ferrule
16 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,75 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
10 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal cylindrical indicator
B6
Tightening Torque Min
1,2 Nm
Tightening Torque Max
2,0 Nm
Rail Tightening Torque Min
1,0 Nm
Rail Tightening Torque Max
1,2 Nm
DIMENSIONS
Width
12 mm
Length
52,80 mm
Height Mr 35x75
58,70 mm
Height MR 35x15
66,20 mm
Height Mr 32
63,30 mm
Certificates
CSA
cULus
VDE
ATEX
CSAConductor Cross-section
AWG 12-4
Nominal Voltage
630 V
cULusConductor Cross-section
AWG 12-4
VDEConductor Cross-section
16 mm²
