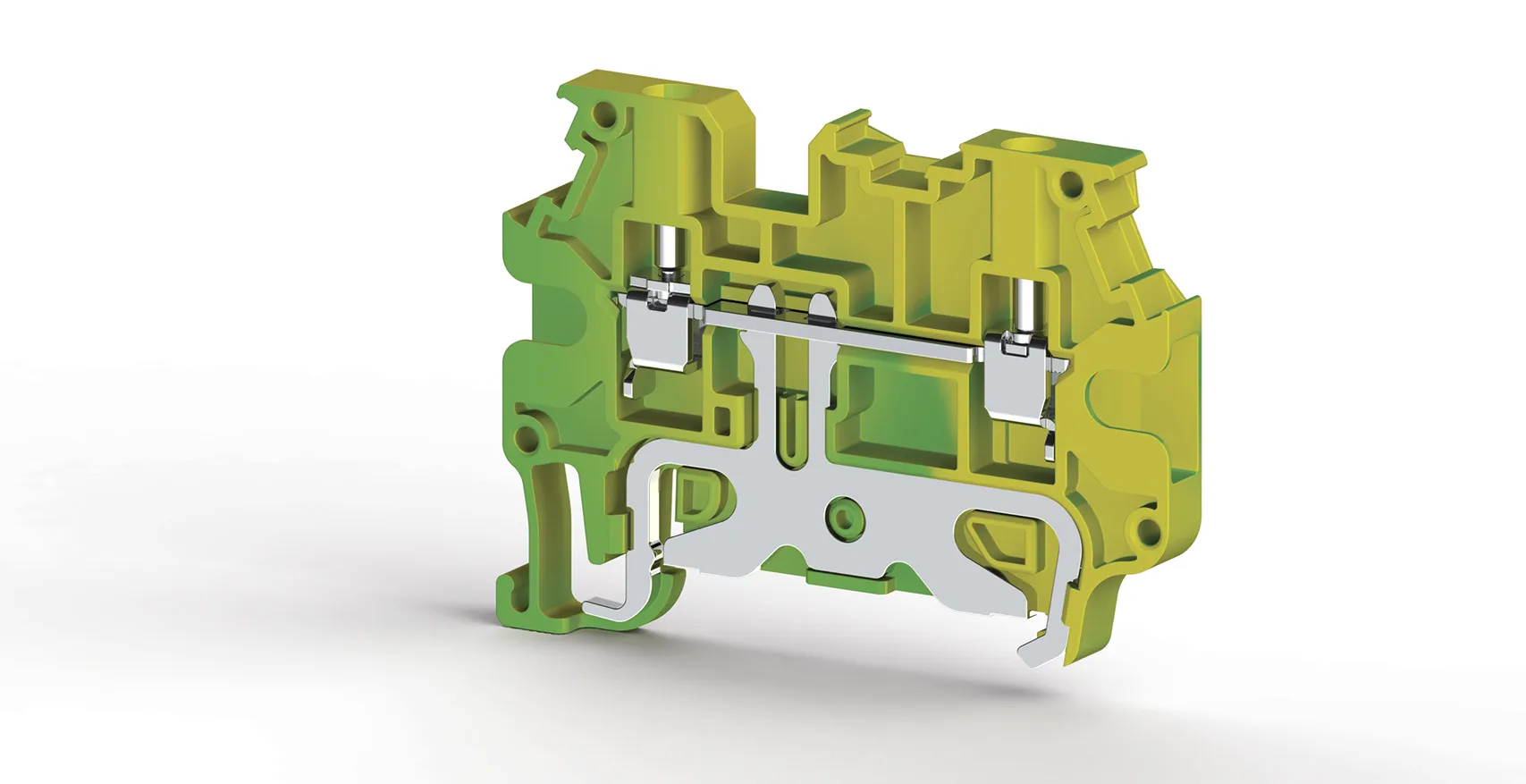

AVK 2,5RT Yellow-Green
Screw Type, 2,5 mm² grounding terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
334280
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0124 kg.
Product Description
Screw Type, 2,5 mm² grounding terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
4 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
2,5 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A3
Tightening Torque Min.
0,4 Nm
Tightening Torque Max.
0,6 Nm
DIMENSIONS
Width
5 mm
Length
58 mm
Height MR 35x7.5
43,80 mm
Height MR 35x15
51,30 mm
Certificates
CE
UKCA
ROHS
UKRAYNA
EAC
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 811750
D-NS 5x10
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
