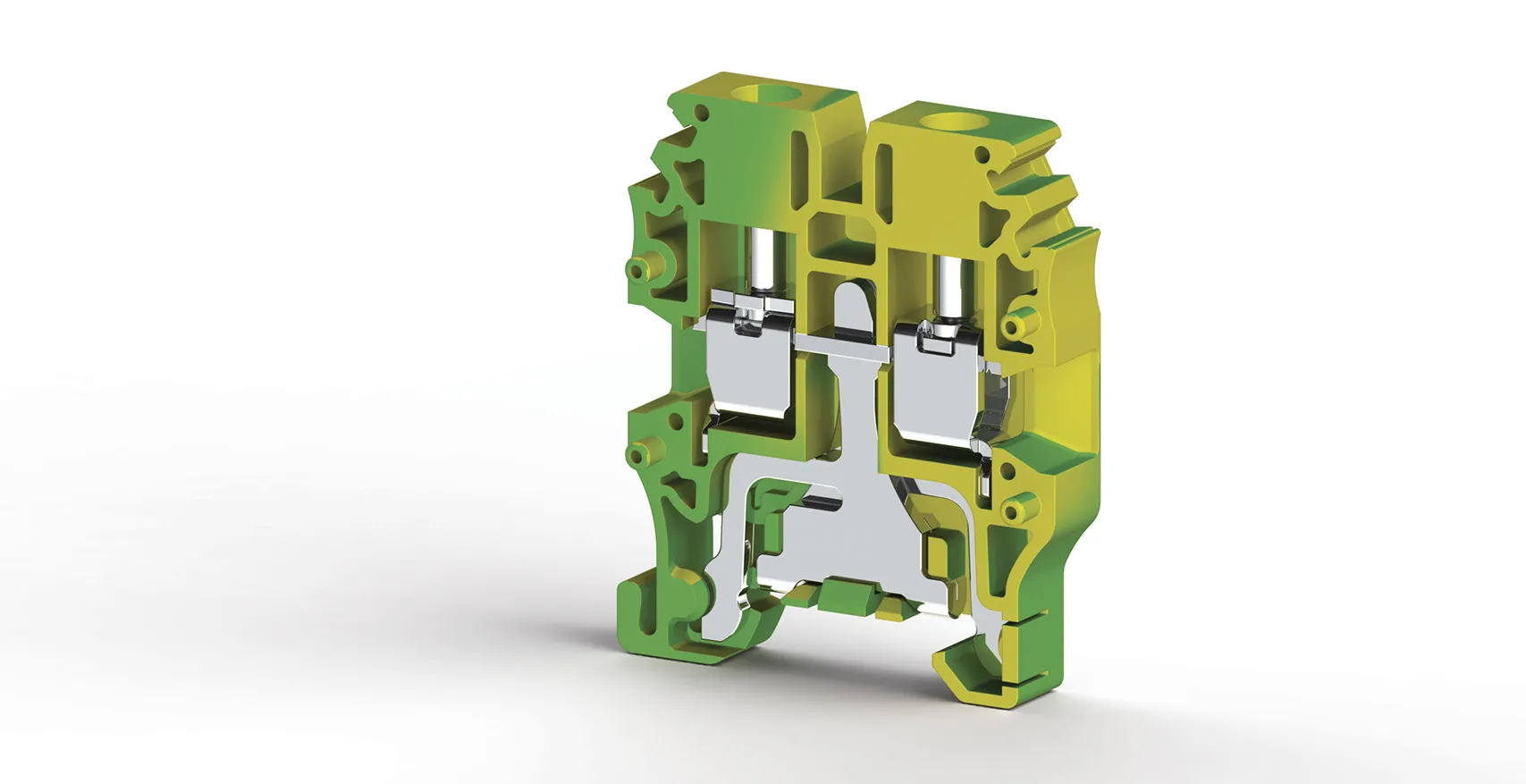

MVK 2,5T Yellow-Green
2.5mm² Mini Screw-Type Ground Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
334420
Packing Unit
50 pcs.
Customs Tariff No.
853630300000
Weight per piece (inc. packing)
0.0069 kg.
Product Description
2.5mm² Mini Screw-Type Ground Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Note
Observe the current carrying capacity of the DIN rails.
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B3
Tightening Torque Min
0,4 Nm
Tightening Torque Max
0,6 Nm
DIMENSIONS
Width
5 mm
Length
27,7 mm
Height Mr 15x55
33,7 mm
Certificates
cULus
ATEX
CE
EAC
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 26-12
Nominal Voltage
400 V
Accessories
Zinc Coated
Product Code: 500610
MR 15x5.5 Straight (1m) Zinc Coated Rail
Product Code: 500611
MR 15x5.5 Slotted (1m) Zinc Coated Rail
Product Code: 500612
MR 15x5.5 Straight (2m) Zinc Coated Rail
Product Code: 500613
MR 15x5.5 Slotted (2m) Zinc Coated Rail
Screwdrivers
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 810300
D-NS 5x6
Terminal Blocks
Product Code: 505330
DG 6/5
End Stop
Product Code: 495069
KD 5 Grey
Cover
Product Code: 444429
NPP/MVK 2,5-4 Grey
