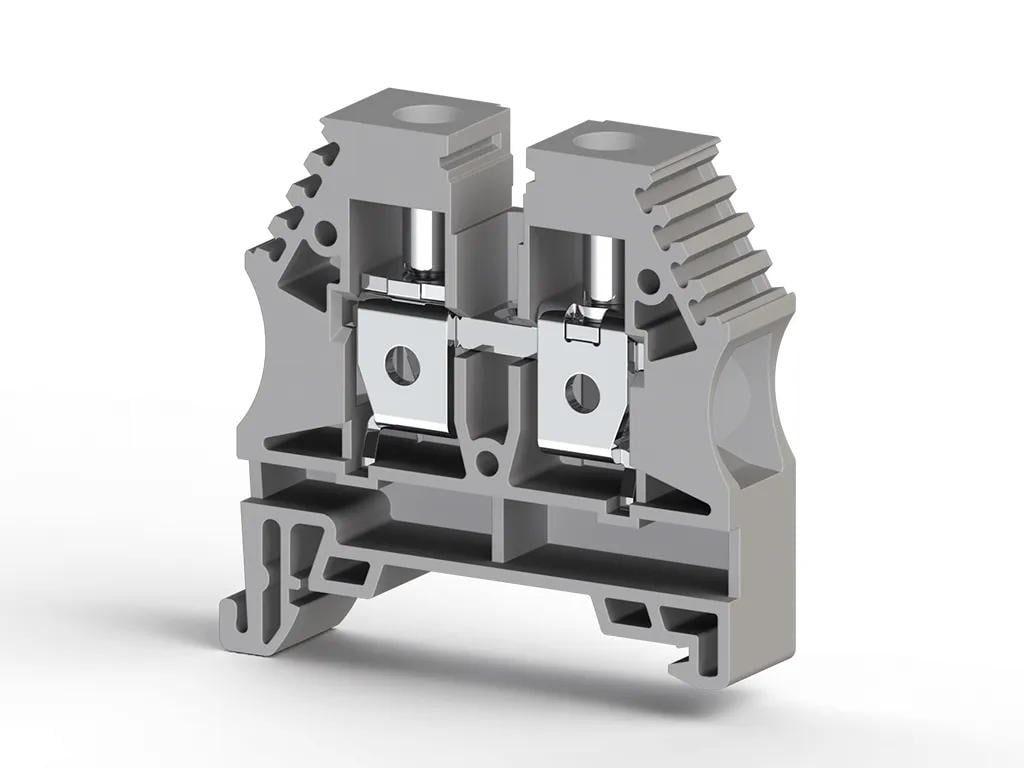

AVK 10 Grey
10mm² single deck feed through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304150
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0161 kg.
Product Description
10mm² single deck feed through terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
57 A
Nominal Voltage
630 V
Maximum Load Current
76 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
16 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
16 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
10 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
6 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal cylindrical indicator
B6
Tightening Torque Min
1,2 Nm
Tightening Torque Max
1,8 Nm
DIMENSIONS
Width
10 mm
Length
44,2 mm
Height Mr 35x75
44,4 mm
Height MR 35x15
51,9 mm
Certificates
CE
EAC
DNV
TSE
ROHS
UKRAYNA
UKCA
CSA
cULus
VDE
ATEX
CEConductor Cross-section
AWG 16-6
Nominal Current
65 A
Nominal Voltage
600 V
Tightening Torque
1,4 Nm
EACConductor Cross-section
AWG 16-6
Nominal Current
65 A
Nominal Voltage
600 V
DNVConductor Cross-section
10 mm²
Nominal Current
57 A
Nominal Voltage
630 V
TSENominal Current
57 A
Nominal Voltage
630 V
Accessories
Cover
Product Code: 444120
NPP/AVK 2,5-10 Grey
Separation Plate
Product Code: 462120
APP/AVK 2,5-10 Grey
Product Code: 467919
AD 1 Grey
Product Code: 498130
IP 2S Printed
Product Code: 498140
IP 2
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561240
IKT-D 4 (0,8 x Ø4,0)
Test Sockets
Product Code: 493023
TF (Ø 2,3)
Product Code: 493050
TF (Ø 4)
Product Code: 490070
TSK 7 (Ø4)
Product Code: 490040
TSK 4 (Ø2,3)
Terminal Thermal Printer Labels
Product Code: 813100
D-NS 10x10
Screw Type Cross Connector
Comb Cross Connector
Marking
