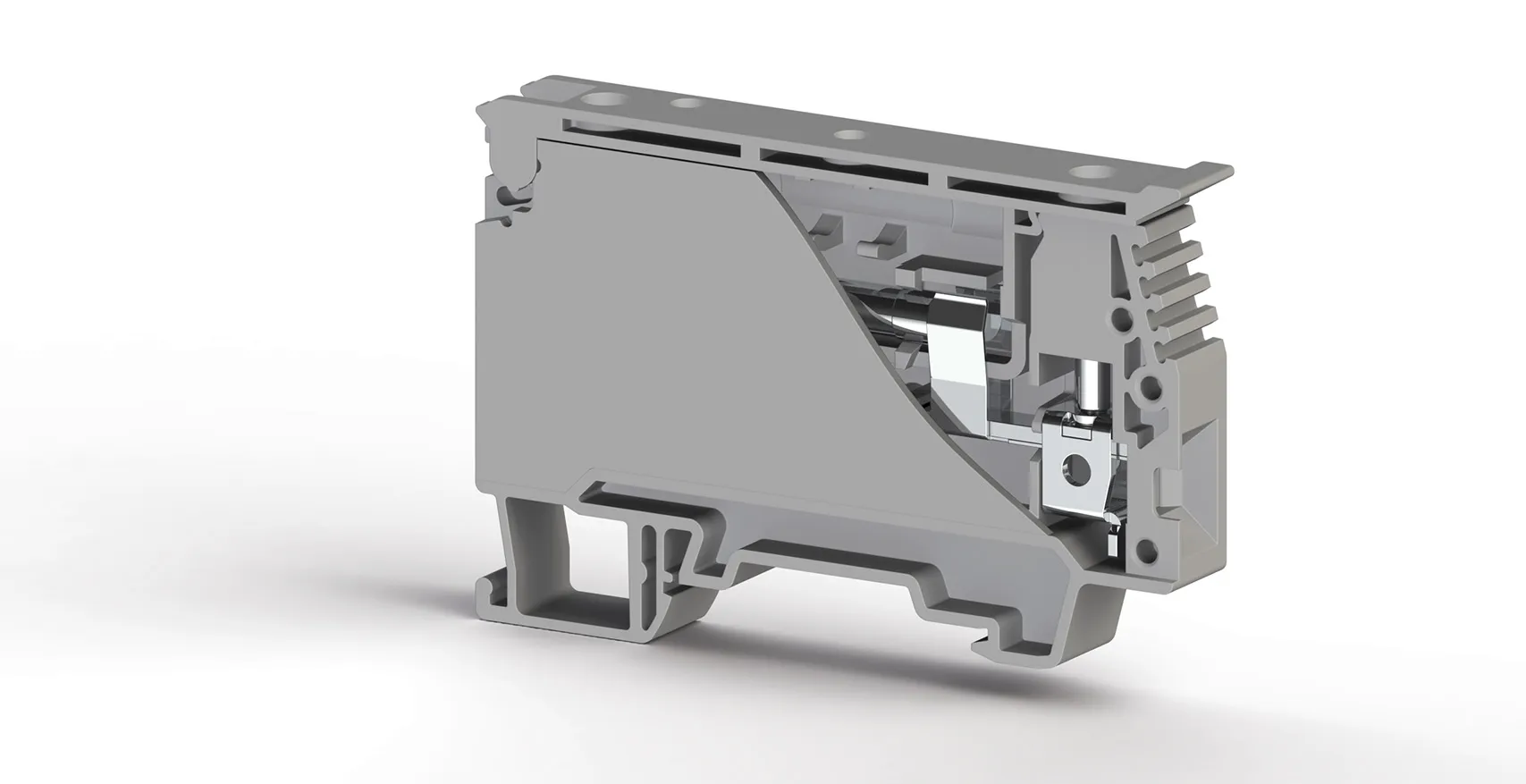

ASK 4LD-48VDC Grey
Screw Type, 6 mm², fuse terminal block with LED
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
351749
Packing Unit
20 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.029 kg.
Product Description
Screw Type, 6 mm², fuse terminal block with LED
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-3
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Fuse
G / 6,35 x 31,75
Fuse Type
Cam / Glass
ELECTRICAL FEATURES
Nominal Current
6,3 A
Nominal Voltage
48 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,34 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
0,34 mm²
Multi-core max. conductor cross-section
10 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
6 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
4 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B5
Tightening Torque Min
0,5 Nm
Tightening Torque Max
0,8 Nm
DIMENSIONS
Width
10 mm
Length
75,20 mm
Height Mr 35x75
52,40 mm
Height MR 35x15
59,90 mm
Certificates
cULus
CE
EAC
DNV
ROHS
UKCA
cULusConductor Cross-section
AWG 22-8
Nominal Current
6,3 A
Nominal Voltage
48 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 813100
D-NS 10x10
