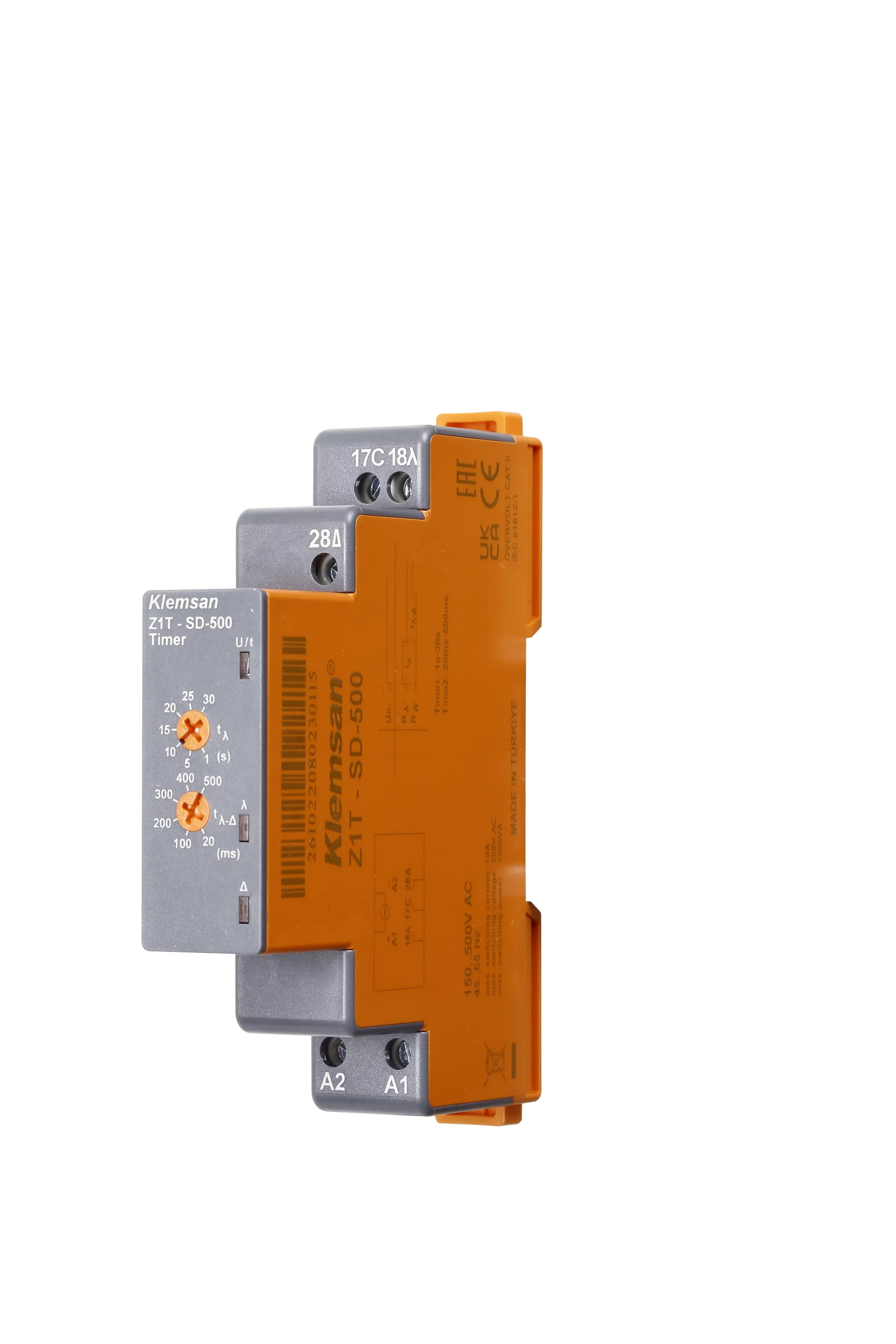

Z1T-SD-500
Timer Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
261022
Packing Unit
1 pcs.
Customs Tariff No.
853649000029
Weight per piece (inc. packing)
0.08 kg.
Product Description
Timer Relay
Technical Information
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Housing Width (mm)
18
Mounting Type
Panel & Rail
Supply Frequency
45-65 Hz
Output Type
Relay
Functions
SD
Reset Time
Maks. 100ms
Trigger Input Voltage
----
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to + 60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95%
AUXILIARY CONTACTS
Type
2 C/O (SPDT)
Max. AC Ratings (NO Contact)
16A/250V; 2000VA
Max. DC Ratings (NO Contact)
5A/30VDC; 150W
Mechanical Service Life
= 10^7 operations
Electrical Service Life (NO Contact)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
Time Range
Timing 1
0,1 sn .. 30 sn
Timing 2
20 msn .. 500 msn
POWER SUPPLY
Voltage
150-500 VAC
Power Consumption
<1,5W DC / <10VA AC
Certificates
CE
UKCA
UL
