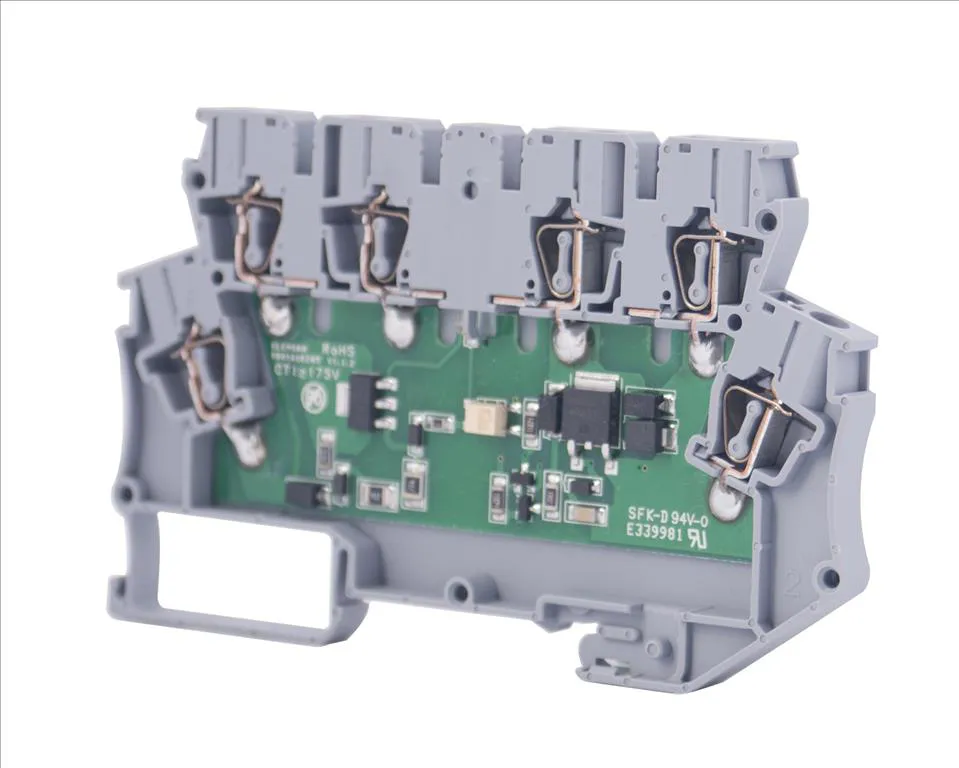

WG – EKI
Reverse Current Protection
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
110010N
Packing Unit
20 pcs.
Customs Tariff No.
853690950000
Product Description
Reverse Current Protection
Technical Information
ELECTRICAL FEATURES
Nominal Voltage
X V
Diode Voltage
1000 V
Diode Voltage Drop
0,7 V
Protection Class
IP 20
Weight
19,8 gr
Packaging Quantity
20
Diode Current
1 A
DIMENSIONS
Width
6,2 mm
Length
100,5 mm
Height Mr 35x75
-- mm
Height MR 35x15
-- mm
Height
-- mm
general
Isolation
PA
Ul 94 Flammability Class
V2
connection-information
Single Conductor Minimum Cross Section
0,08 mm²
Single Conductor Maximum Cross Section
4 mm²
Multiple Conductor Minimum Cross Section
0,14 mm²
Multiple Conductor Maximum Cross Section
2,5 mm2
Awg Conductor Range
28 - 12
Connection Type
Spring connection
Cable Stripping Length
8 - 10 mm
Certificates
CE
UKCA
