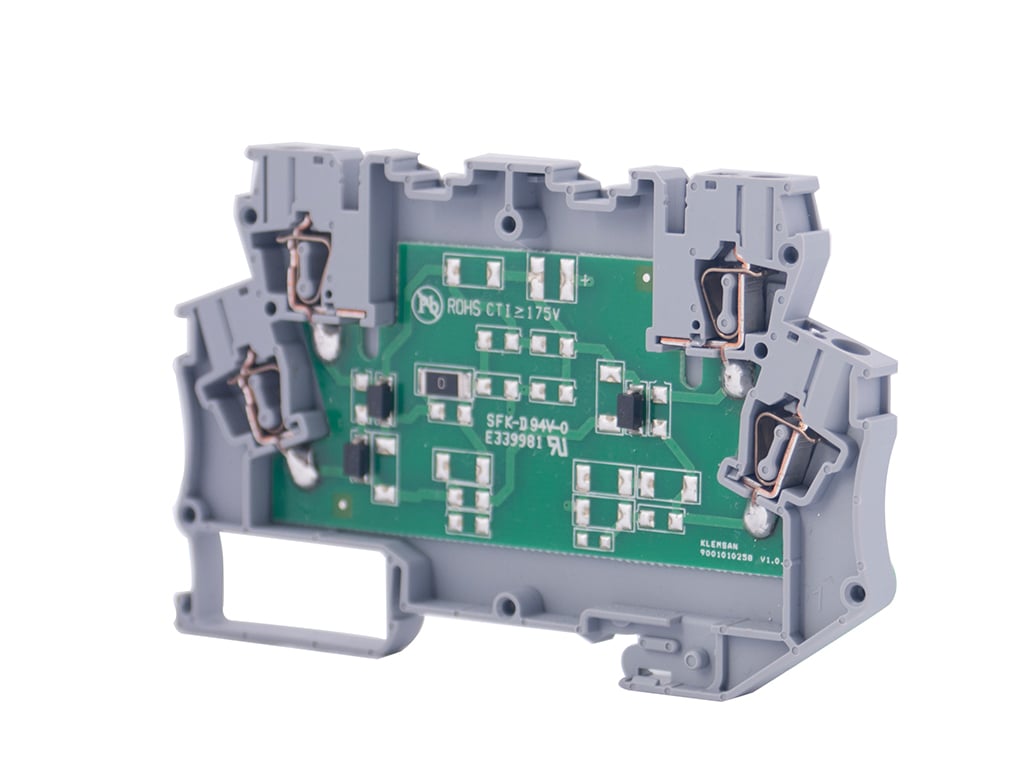

OPK EKI
Opto – Coupler Terminal Block 48V AC/DC ( 5…48V DC – 0.65 DC )
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
112320N
Packing Unit
1 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.037 kg.
Product Description
Opto - Coupler Terminal Block 48V AC/DC ( 5...48V DC - 0.65 DC )
Technical Information
ELECTRICAL FEATURES
Input Voltage
48V AC/DC
Output Switching Voltage Range
5-48V DC
Max Switching Current
0.65A DC
DIMENSIONS
Width
6,2 mm
Length
100,5 mm
Height Mr 35x75
63,5 mm
Height MR 35x15
71 mm
Height
-- mm
general
Isolation
PA
Ul 94 Flammability Class
V2
mechanical-properties
Packaging Quantity
1
connection-information
Single Conductor Minimum Cross Section
0,08 mm²
Single Conductor Maximum Cross Section
4 mm²
Multiple Conductor Minimum Cross Section
0,08 mm²
Multiple Conductor Maximum Cross Section
2,5 mm2
Awg Conductor Range
28-12
Connection Type
Spring connection / Yay baglanti
Cable Stripping Length
8 - 10 mm
Certificates
CE
UKCA
ROHS
