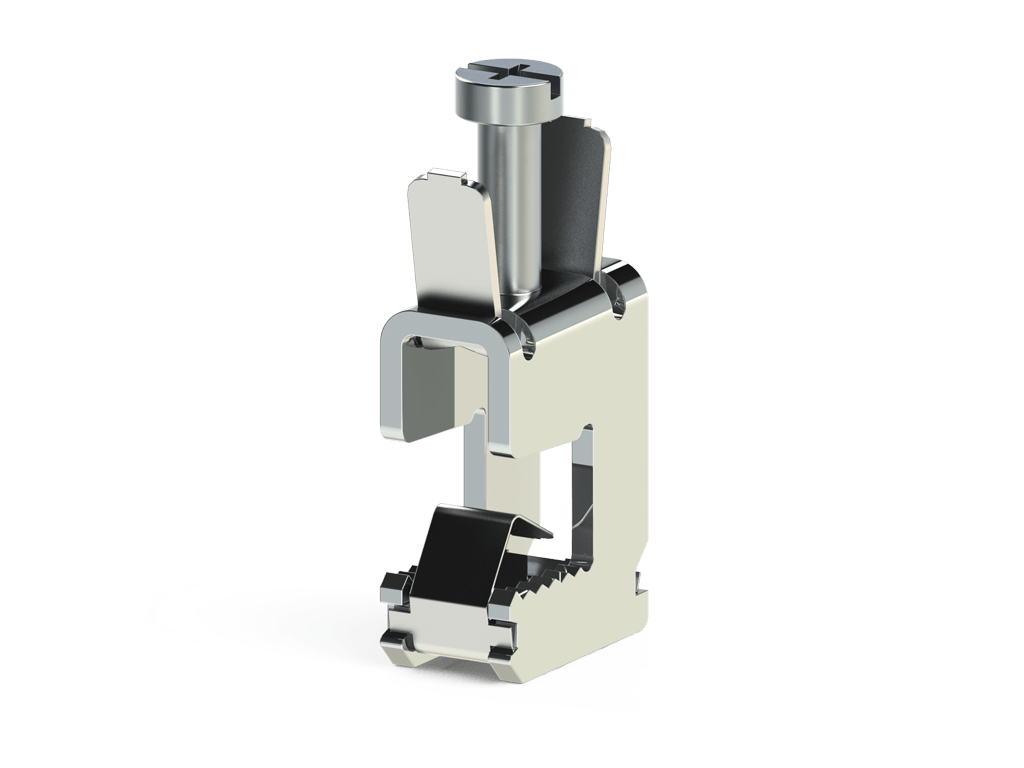

SBK 16/10
Clamping Yokes for Busbars
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
401174
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
226 kg.
Product Description
Clamping Yokes for Busbars
Technical Information
ELECTRICAL FEATURES
Nominal Current
65 A
Maximum Load Current
101 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
25 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
4 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
16 mm²
Min. Stripping Length
22 mm
Tightening Torque Max
4 Nm
DIMENSIONS
Width
11,7 mm
Length
21,5 mm
Height
25,0 mm
