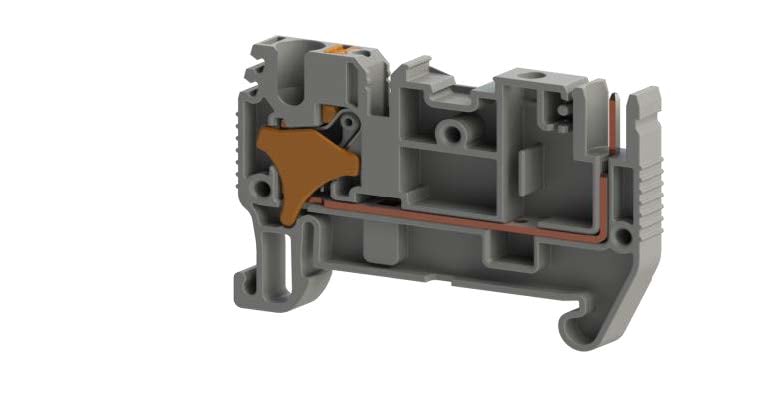

PRD 2.5-PC Grey
Push-in Type, with orange button, 2,5 mm² feed through terminal block (pin)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
328789
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Product Description
Push-in Type, with orange button, 2,5 mm² feed through terminal block (pin)
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL1 - HL2 - HL3
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
4 Kv
Nominal Current
10 A
Nominal Voltage
250 V
Maximum Load Current
10 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,08 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
28 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,14 mm²
Max. Stranded Conductor Cross-Sectional Area
2,5 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,14 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
2,5 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A3
DIMENSIONS
Width
5,8 mm
Length
50,70 mm
Height MR 35x7.5
34,50 mm
Height MR 35x15
42 mm
A
5,08 mm
Certificates
cULus
CE
ROHS
UKCA
cULusConductor Cross-section
AWG 28-12
Nominal Current
10:00 AM
Nominal Voltage
150 V
