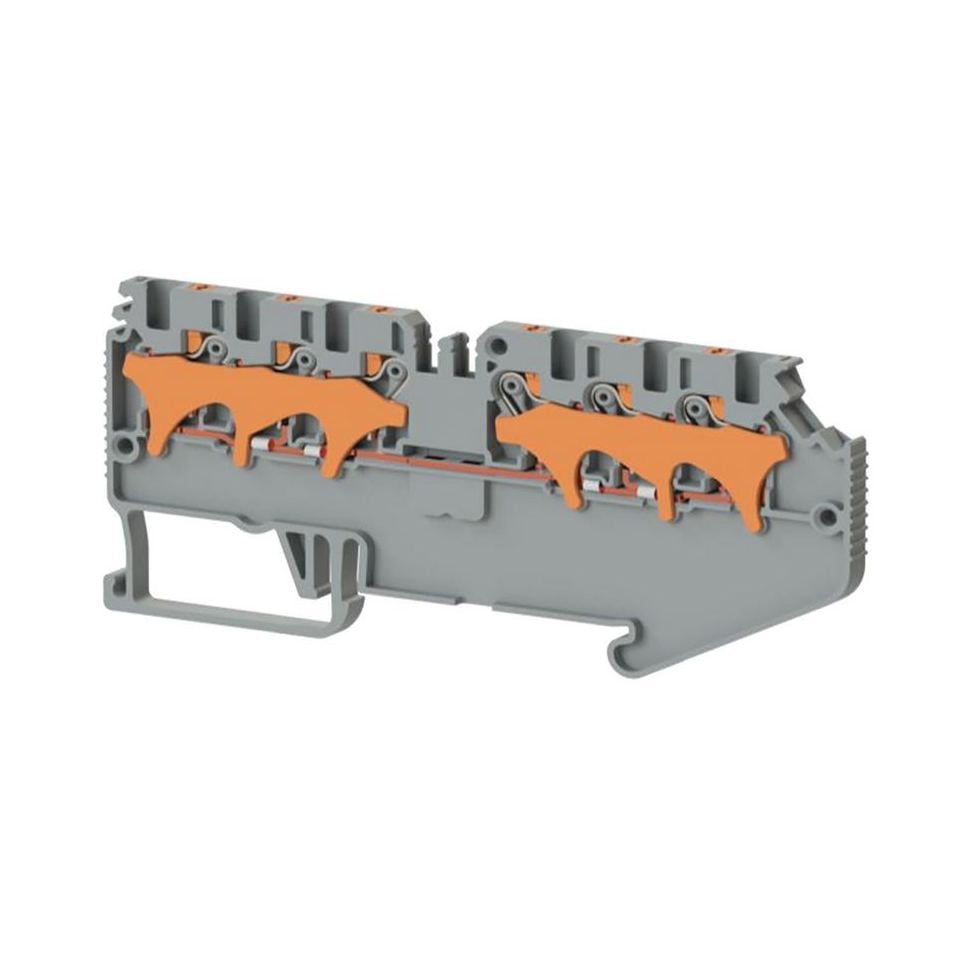

DS 1F3-1F3 K1 (Grey)
1 mm² single-phase 6-pole terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 35
Packing unit : 35 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
328889
Packing Unit
35 pcs.
Customs Tariff No.
853690950000
Product Description
1 mm² single-phase 6-pole terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
6
Color
grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
13,5 A (at 1 mm²) A
Nominal Voltage
500 V
Maximum Load Current
15 A (with 1,5 mm² conductor cross section) A
CONNECTION DATA
Connection Type
Push-in connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
1,5 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
16 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
1,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
0,75 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A1 / B1
DIMENSIONS
Width
3,60 mm
Length
90,40 mm
Height Mr 35x75
41,95 mm
Height MR 35x15
49,45 mm
Certificates
