PAK 50-70 KK Grey

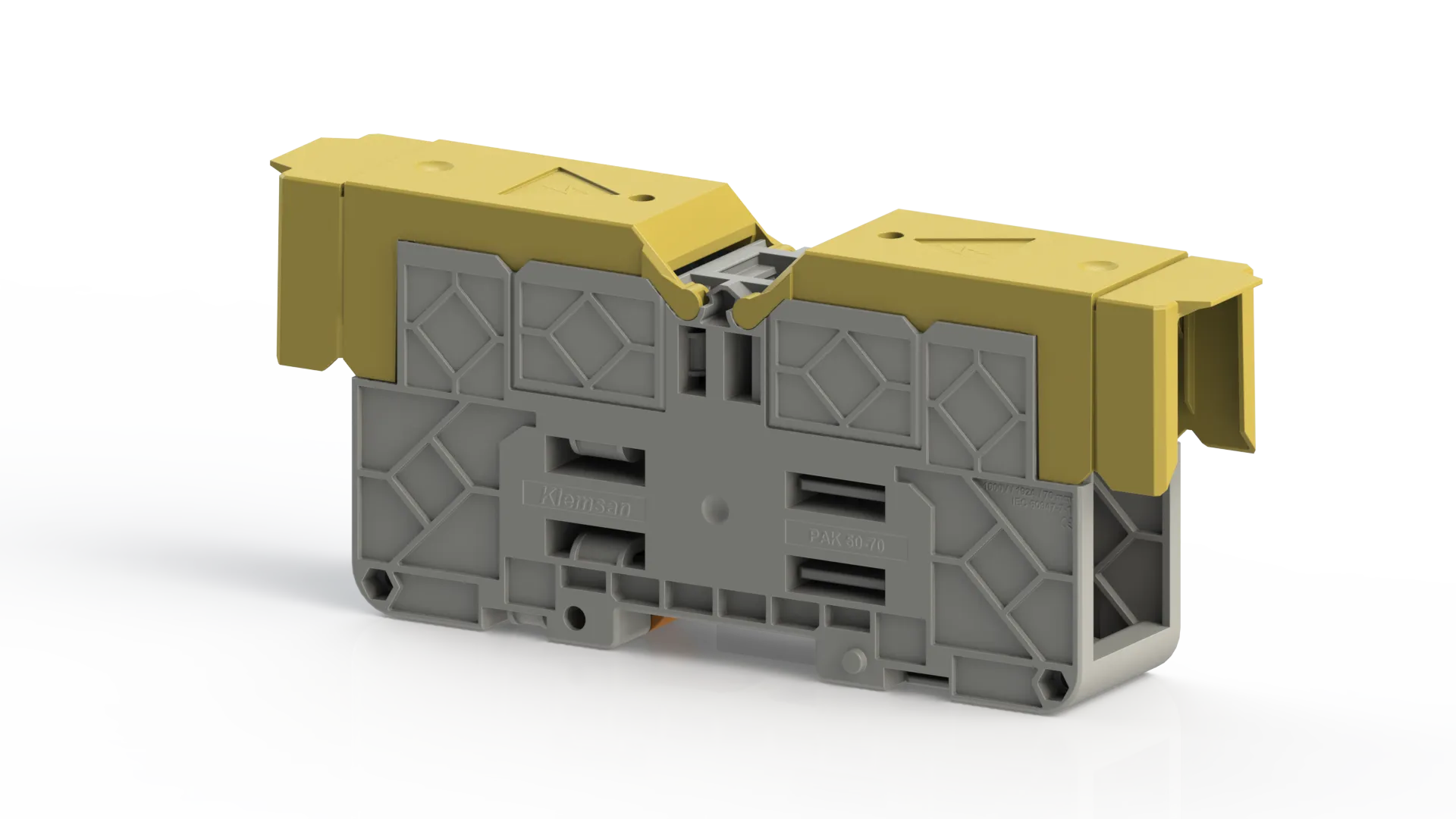

70mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
313059
Packing Unit
10 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.178 kg.
Product Description
70mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Bil.Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
Vo
Impulse Voltage Category
3
Insulation Material Group
1
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv Kv
Nominal Current
192 A
Nominal Voltage
1000 V
CONNECTION DATA
Connection Type
Bolt Connection
Tightening Torque Min.
6 Nm
Tightening Torque Max.
12 Nm
Min. Hole Diameter
8,4 mm
Min. DIN 46234 Cable Lug
2,5 mm²
DIN 46234 Cable Lug (Max.)
95 mm²
Min. DIN 46235 Cable Lug
16 mm²
DIN 46235 Cable Lug (Max.)
70 mm²
Min. DIN 46234 Cable Lug
14 AWG
DIN 46234 Cable Lug (Max.)
3/0 kcmil
Min. DIN 46235 Cable Lug
6 AWG
DIN 46235 Cable Lug (Max.)
2/0 kcmil
DIMENSIONS
Width
31,80 mm
Length
170,00 mm
Height MR 35x7.5
70,00 mm
Height MR 35x15
77,50 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 10-300
Nominal Current
310 A
Nominal Voltage
1000
