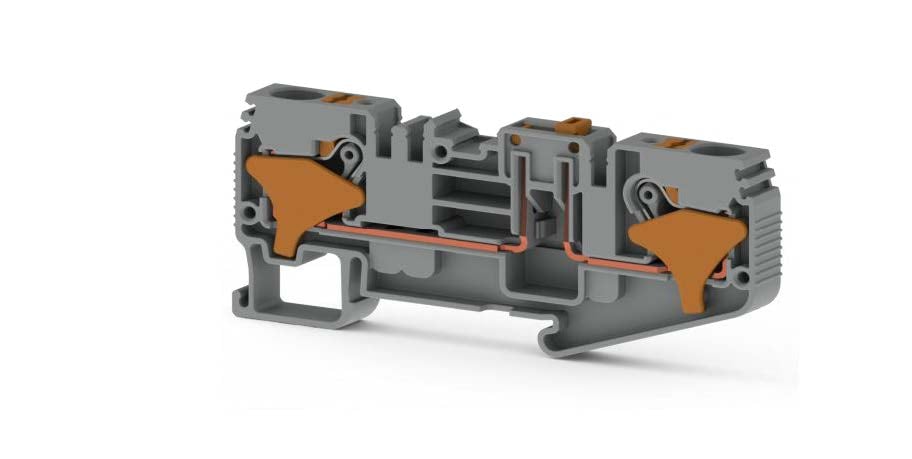

PRD 6A Grey
6 mm² Push-in 2-pole Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
329609
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Product Description
NULL
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
6 Kv
Nominal Current
20 A (at 6 mm²) A
Nominal Voltage
500 V
Maximum Load Current
20 A (with 10 mm² conductor cross section) A
CONNECTION DATA
Connection Type
Push-In
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
10 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
8 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
6 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
1,5 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal Cylindrical Indicator
A5
DIMENSIONS
Width
8 mm
Length
88,60 mm
Height MR 35x7.5
39,45 mm
Height MR 35x15
46,95 mm
Certificates
CE
ROHS
UKCA
