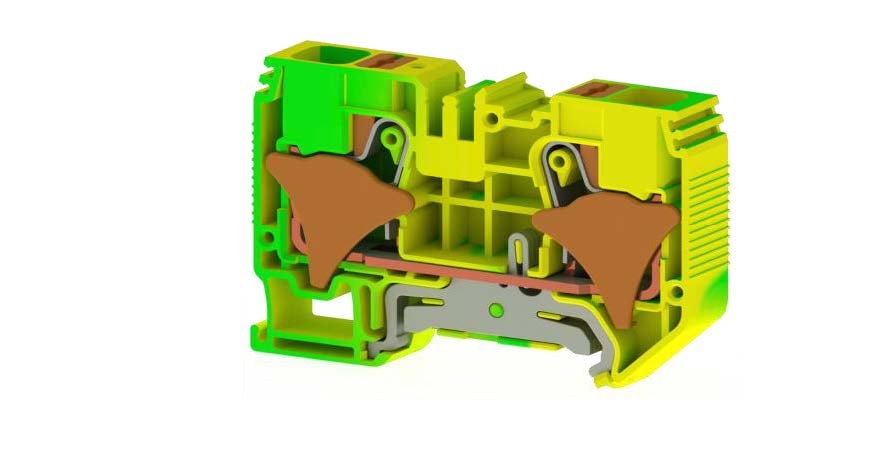

PRD 16 T
16 mm² Push-in 2-pole Ground Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
337750
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Product Description
NULL
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Yellow-gren
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
VO
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Maximum Load Current
A
CONNECTION DATA
Connection Type
Push-In
Min. Solid Conductor Cross-Sectional Area
0,5 mm²
Max. Solid Conductor Cross-Sectional Area
25 mm²
Conductor Cross-Section AWG/kcmil Min.
20 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area
16 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
1,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
16 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
4 mm²
Min. Stripping Length
18 mm
Max. Stripping Length
20 mm
Internal Cylindrical Indicator
A7
DIMENSIONS
Width
12 mm
Length
76,80 mm
Height MR 35x7.5
51,40 mm
Height MR 35x15
58,90 mm
Certificates
CE
ROHS
UKCA
