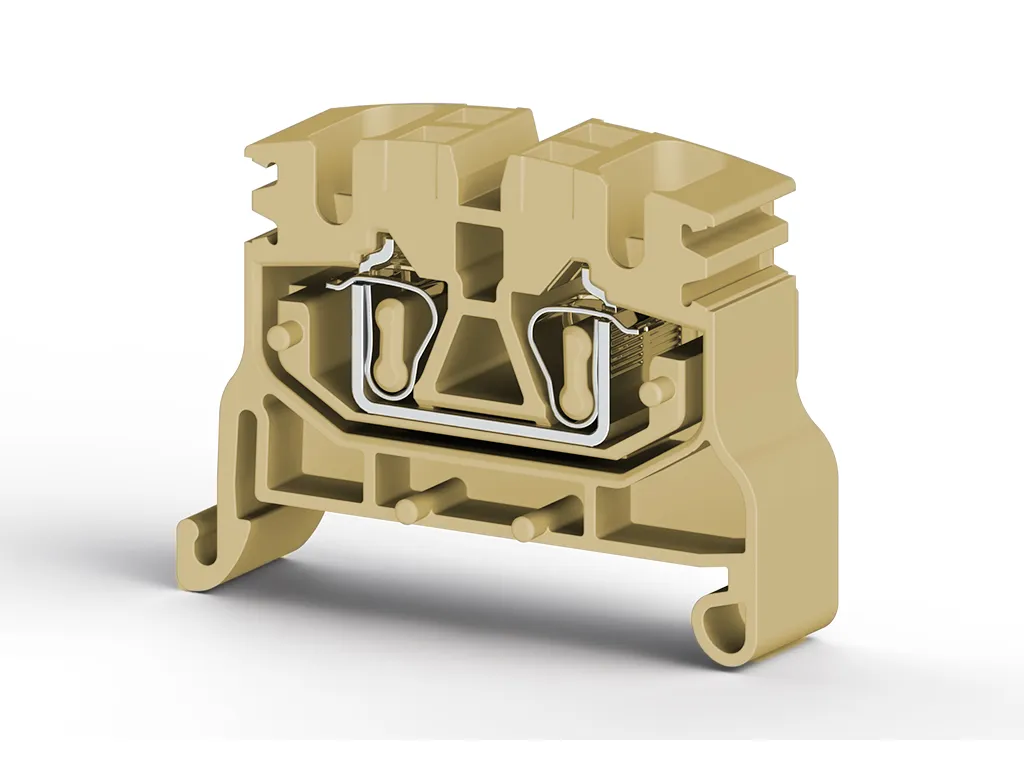

MYKR 2,5C Bej
2.5 mm² Cage Clamp 4-Pole Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
306490
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0084 kg.
Product Description
2.5 mm² Cage Clamp 4-Pole Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Beige
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
24 A
Nominal Voltage
800 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,08 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B3
DIMENSIONS
Width
10 mm
Length
40,75 mm
Height Mr 35x75
41,6 mm
Height MR 35x15
39,1 mm
Certificates
CE
ROHS
UKCA
UKRAYNA
