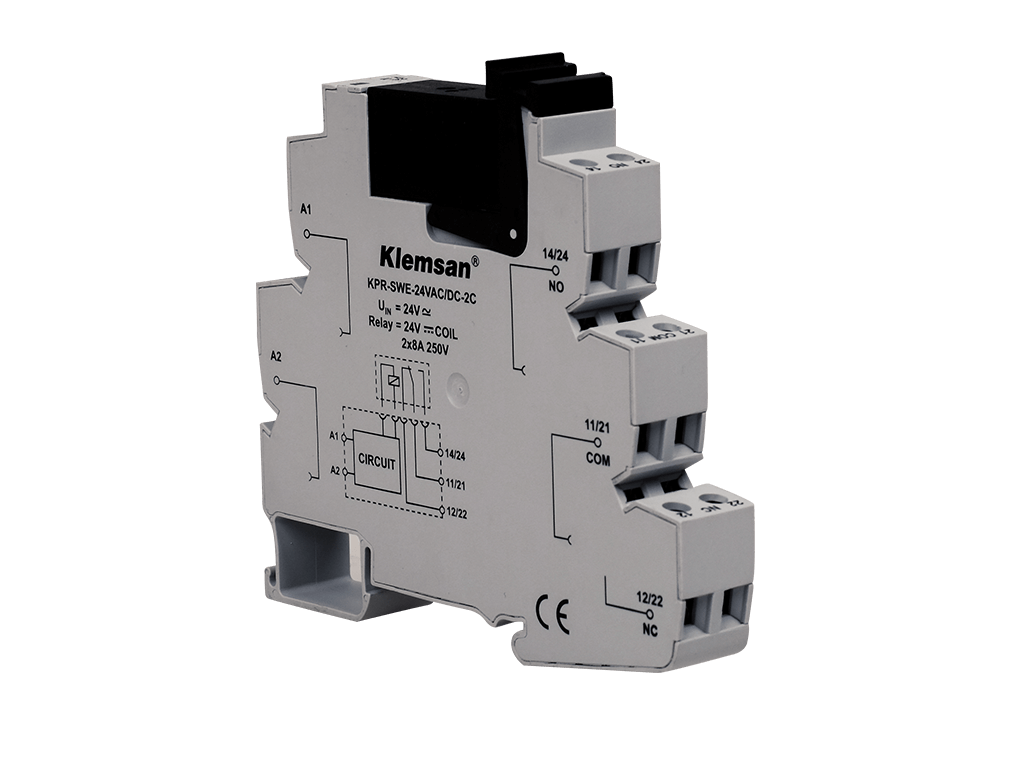

KPR-SWE-6VDC-2C
2 C/0 PLC Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
272504
Packing Unit
10 pcs.
Customs Tariff No.
853641900000
Product Description
2 C/0 PLC Relay
Technical Information
CONNECTION DATA
Connection Type
2 C/O (SPDT)
GENERAL
Connection Type
Screw terminals / 2 C/O (SPDT)
Protection Class
IP20
Weight (g)
64
Pack Quantity
10
Housing Width (mm)
14
Mounting Type
Rail Mount
Max. Cable Cross-Section
2,5
Max. Torque
0,4Nm
Insulation Strength
1000M Ohm (500VDC)
CONNECTION INFORMATION
Material
AgSnO2
Coil Voltage
5V
Coil Impedance
62 x (1 ±10%) Ohm
Coil Consumption
---
Operating Time
15ms max.
Release Time
8ms max.
Max. AC Ratings
400VAC
Max. DC Ratings
300VDC
Mechanical Service Life (NO)
= 10^7 operations
Electrical Operating Life (UL Approved, 85°C, NO)
3x10^4 operations
Electrical Operating Life (UL Approved, 85°C, NC)
1x10^5 operations
ENVIRONMENTAL CONDITIONS
Operating Temperature
-40°C +85°C
Storage Temperature
-40°C +85°C
Relative Humidity (Non-condensing)
%5 .. %85 (non-condensing)
CURRENT MEASUREMENT INPUT
Power Consumption
1W DC
Rated Voltage UN
6VDC
Operating Voltage Range
> %80 x UN
Isolation Voltage
< %40 x UN
Integrated RCZ Filter
----
DIELECTRIC STRENGTH
Between Connections and Relay Coil
5000VAC 1 min.
Between Connections
1000VAC 1 min.
ACCESSORIES AND COMPONENTS
Socket Type
KPR-SWE-6VDC-2C (RELAY SOCKET)
Socket Description
PLC RELAY SOCKET (6VDC)
Socket Order Number
272505
Socket Pack Quantity
10
Relay Type
6VDC Relay
Relay Description
Relay for 272504
Relay Order Number
095054
Relay Pack Quantity
10 pcs.
16-Pole Jumper Type
--
16-Pole Jumper Description
--
16-Pole Jumper Order Number
--
16-Pole Jumper Pack Quantity
--
8-Pole Jumper Type
TK-KPR-S (KPR-SWE BRIDGE/8
8-Pole Jumper Description
Plug in bridge - 8
8-Pole Jumper Order Number
476 606
8-Pole Jumper Pack Quantity
25
Switch 2-Pole Jumper Pack Quantity
--
Switch 2-Pole Jumper Order Number
--
Switch 2-Pole Jumper Description
--
Switch 2-Pole Jumper Type
--
Dekafix Type
DG 10/6T
Dekafix Description
Terminals Lebels for interface relays
Dekafix Order Number
505 390
Dekafix Pack Quantity
360
Certificates
CE
UKCA
UL
Accessories
