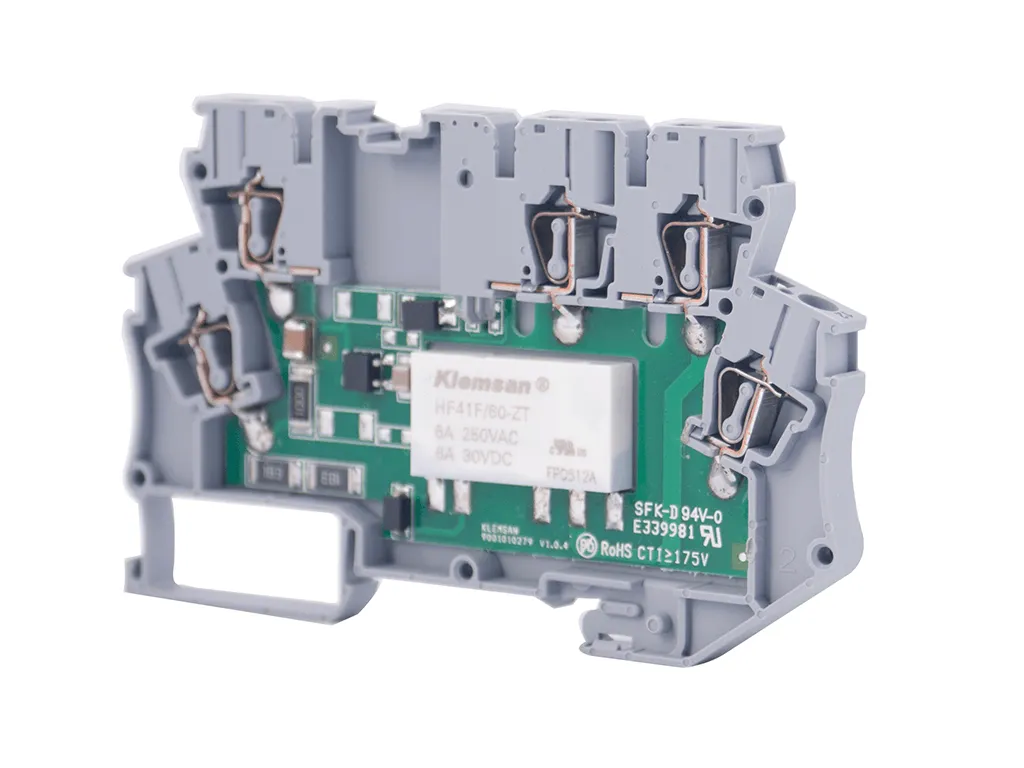

KPR-CIE-24VAC/DC-1C
Integrated Interface relay module
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
271520
Packing Unit
10 pcs.
Customs Tariff No.
853641900000
Weight per piece (inc. packing)
26 kg.
Product Description
Integrated Interface relay module
Technical Information
GENERAL
Connection Type
Cage Clamp
Protection Class
IP20
Weight (g)
26
Pack Quantity
10
Diagrams
---
Dimensions
---
Housing Width (mm)
6,2
Mounting Type
Rail Mount
Max. Cable Cross-Section
2,5
Max. Torque
0,4Nm
Insulation Strength
1000M Ohm (500VDC)
CONNECTION INFORMATION
Connection Type
1 C/O
Material
AgSnO2
Coil Voltage
24VDC
Coil Impedance
147x(1± 10%) Ohm
Coil Consumption
170mW
Operating Time
10 ms max.
Release Time
5 ms max.
Max. AC Ratings
6A/250VAC; 1500VA
Max. DC Ratings
6A/30VDC; 180W
Mechanical Service Life (NO)
3x10^7 operations
Electrical Operating Life (UL Approved, 85°C, NO)
3x10^4 operations
Electrical Operating Life (UL Approved, 85°C, NC)
1x10^4 operations
ENVIRONMENTAL CONDITIONS
Operating Temperature
-40°C +85°C
Storage Temperature
-40°C +85°C
Relative Humidity (Non-condensing)
%5 .. %85 (non-condensing)
CURRENT MEASUREMENT INPUT
Power Consumption
<0.35VA AC / <0.35W DC
Rated Voltage UN
24VAC/DC
Operating Voltage Range
0,8 x Un
Isolation Voltage
0,2 x Un
Integrated RCZ Filter
+
DIELECTRIC STRENGTH
Between Connections and Relay Coil
4000VAC 1 min.
Between Connections
1000VAC 1 min.
Certificates
CE
UKCA
UL
