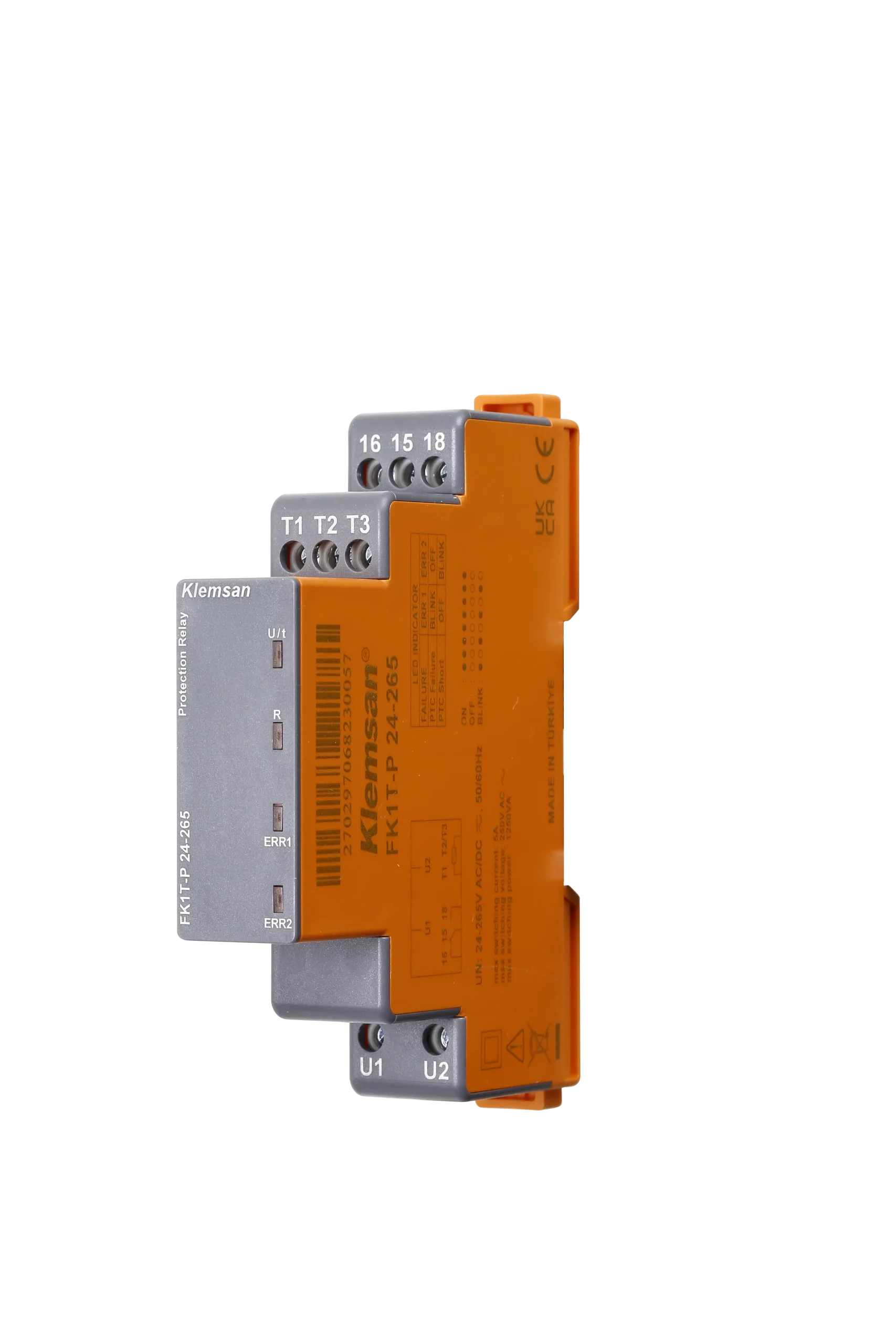

FK1T-P 24-265
Motor Protection Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
270297
Packing Unit
1 pcs.
Customs Tariff No.
853649000029
Weight per piece (inc. packing)
0.08 kg.
Product Description
Motor Protection Relay
Technical Information
PRODUCT SPECIFICATIONS
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Pack Quantity
1
Housing Width (mm)
18
Mounting Type
Rail Mount
EMC/EMI
ok
Voltage
24-265 V DC / 24-265 V AC
Frequency
50-60Hz
Consumption
<13VA AC
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
Type
1 C/O (SPDT)
Max. AC Ratings (NO Contact)
10A/250V; 1250 VA
Max. DC Ratings (NO Contact)
5A/30VDC; 150W
Mechanical Service Life
= 10^7 operations
Electrical Service Life (NO Contact)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
Phase Failure Delay Time
ms
Phase Sequence Delay Time
ms
Neutral Loss Delay Time
ms
PTC Protection Short-Circuit Threshold
20 ohm
PTC Protection High-Value Threshold
2.7 k ohm
PTC Protection Delay Time
500ms
Certificates
CE
UKCA
UL
