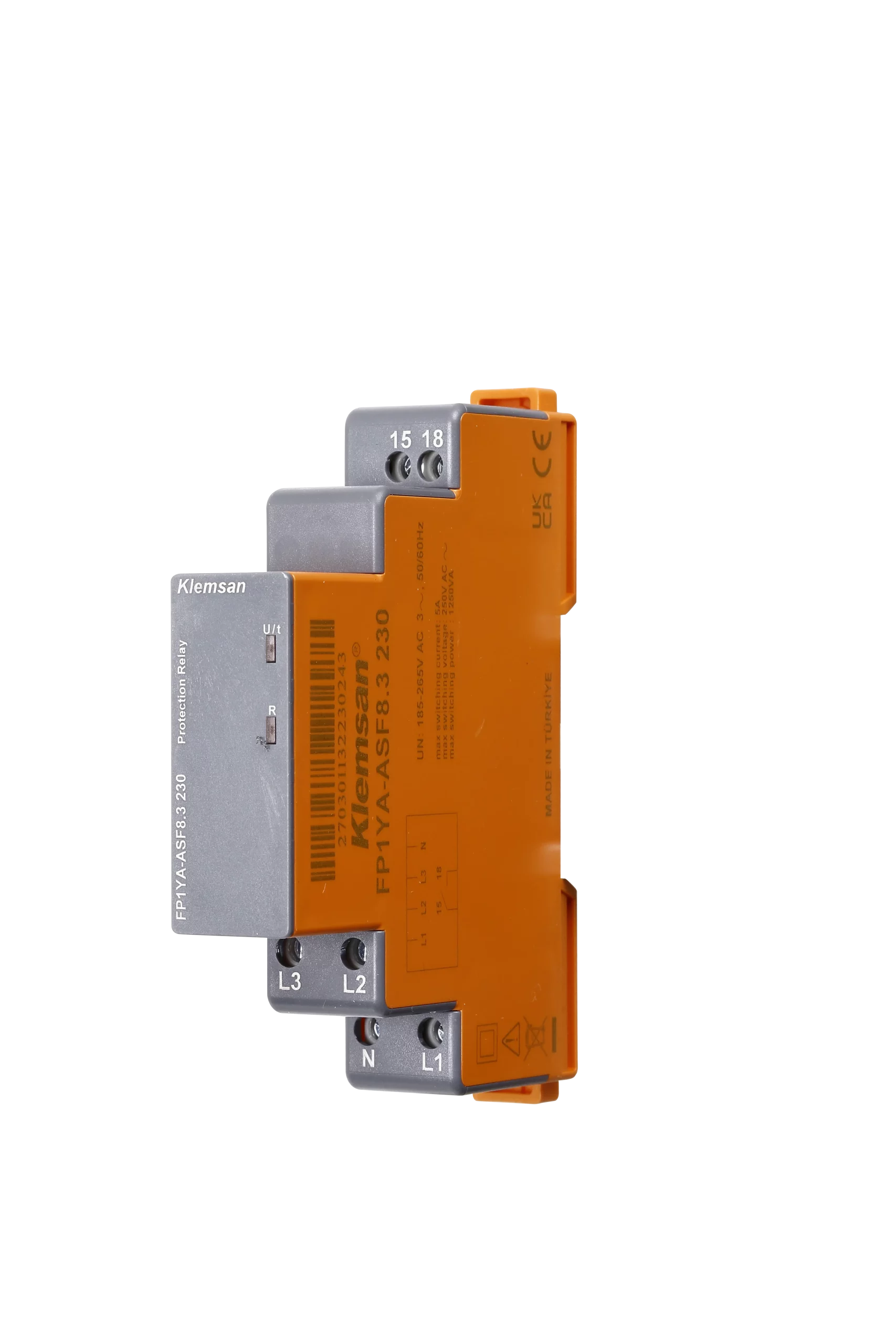

FP1YA-ASF8.3 230
Motor Protection Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
270301
Packing Unit
1 pcs.
Customs Tariff No.
853649000029
Weight per piece (inc. packing)
0.8 kg.
Product Description
Motor Protection Relay
Technical Information
general
Networks
3Ø with neutral
Connection Type
Screw terminal
Protection Class
IP20
Weight G
80
Packaging Quantity
1
Case Width Mm
18
Mounting Type
Rail Mount
Nominal Voltage
230
Emc Emi
ok
power-supply
Voltage
180-265V LN ±10% AC
Frequency
50-60Hz
Consumption
<13VA AC
environmental-conditions
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max. 95% (no condensation)
backup-connections
Type
1 NO (SPST)
Max Values Ac No Side
10A/250V; 1250 VA
Max Values Dc No Side
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life No Side
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
monitoring-functions
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Asymmetry Protection Rangelimit
± 40%
Asymmetry Protection Hysteresis
3% x Un
Asymmetry Protection Delay Time
500ms
Certificates
CE
UKCA
UL
