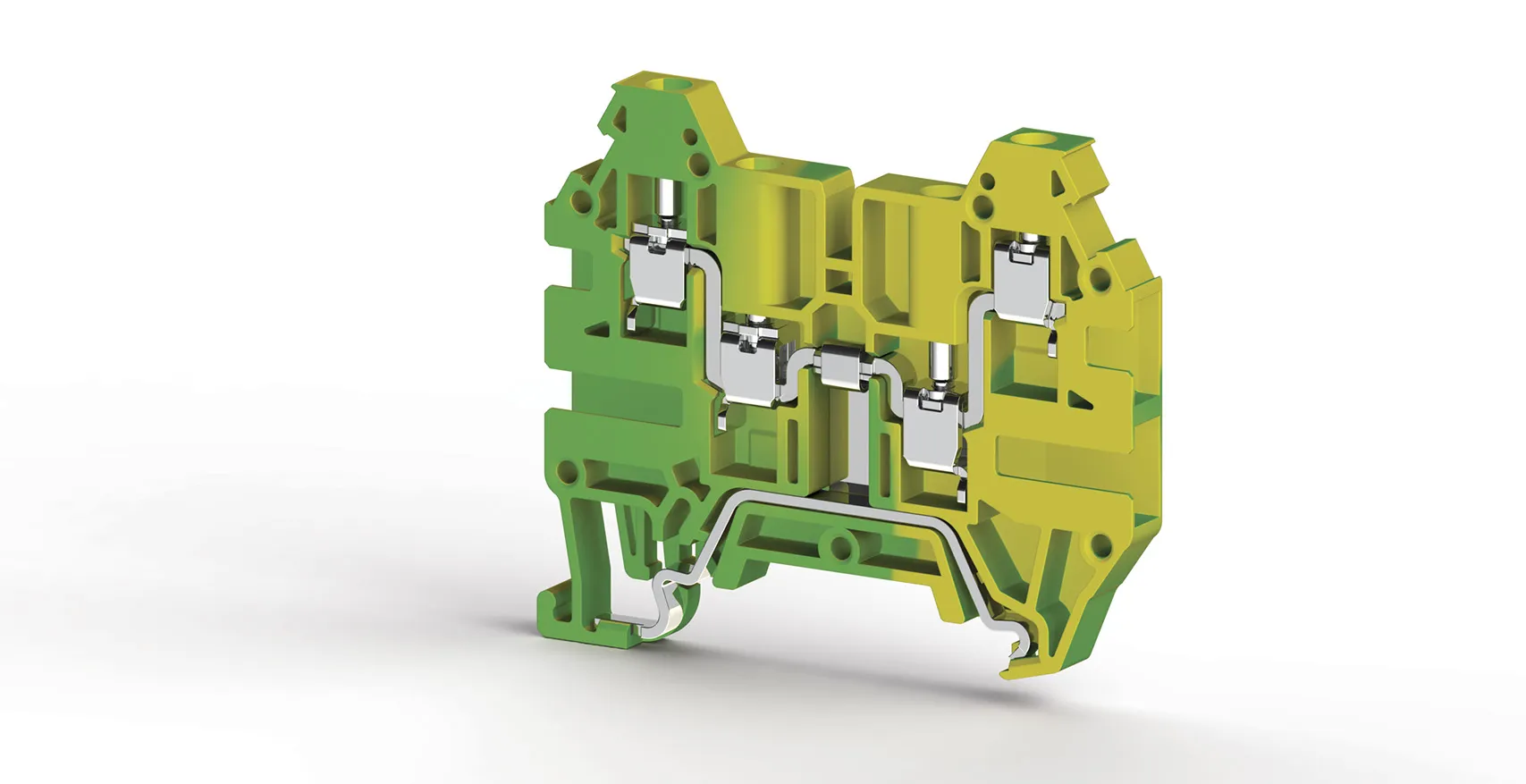

AVK 2,5CCT Yellow-Green
Screw Type, 2,5 mm² 1 input-2 output grounding terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 25
Packing unit : 25 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
334220
Packing Unit
25 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.014 kg.
Product Description
Screw Type, 2,5 mm² 1 input-2 output grounding terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Yellow/Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
4 mm²
Conductor cross-section AWG/kcmil min.
24 AWG
Conductor cross-section AWG/kcmil min.
24 kcmil
Conductor cross-section AWG/kcmil max.
12 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 conductors of the same cross-section, multi-core, twin ferrule with plastic sleeve, min.
0,5 mm²
2 conductors of the same cross-section, multi-core, twin ferrule with plastic sleeve, max.
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
DIMENSIONS
Width
5 mm
Length
57,80 mm
Height MR 35x7.5
50 mm
Height MR 35x15
57,50 mm
Certificates
cULus
ATEX
CE
EAC
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 26-12
Nominal Voltage
630 V
