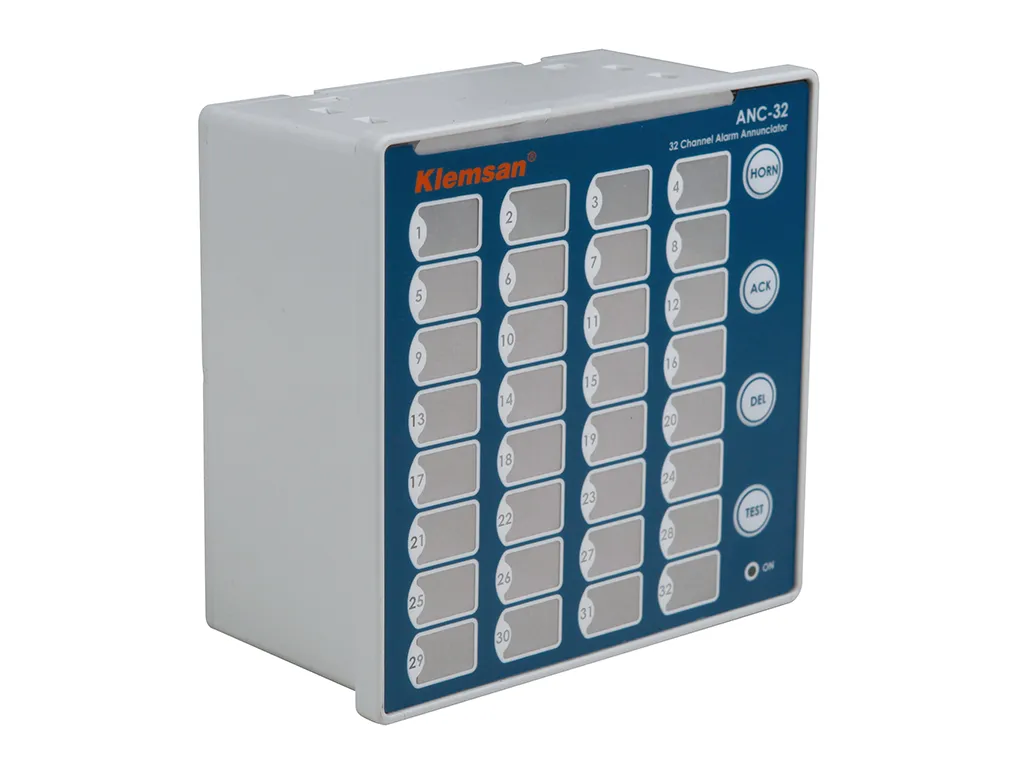

ANC-32 (110V AC/DC, 24-50VAC/DC p.s.)
Alarm Annunciator
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
604677
Packing Unit
1 pcs.
Customs Tariff No.
853180709000
Weight per piece (inc. packing)
540g kg.
Product Description
Alarm Annunciator
Technical Information
general
Connection Type
Screw terminal
Time Interval
0,2,5,10,15,20,25,30 adjustable
Integrated Buttons
4 (Horn, Ack, Delete, Test)
Siren
+
Real Time Data Recording
6080 logs
Battery Life
> 5 years
Protection Class
IP20
Weight G
540
Packaging Quantity
1
Diagrams
---
Dimensions
---
power-supply
Frequency
45-65Hz
Power Consumption
<5W DC / <10VA AC
environmental-conditions
Operating Temperature
-20°C +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max.95% (no condensation)
communication
Protocol
Modbus RTU
Baud Rate
1200-57600
Isolation
2500Vrms
input-signal
Voltage
110V AC / DC
Frequency
45-65Hz
Quantity
32
Response Time
25±10ms
output-connections
Output Type
Relay
Number Of Connections
2
Type
1 NO (SPST)
Max Values Ac
5A/277V;1385VA
Max Values Dc
5A/30VDC;150W
Mechanical Operating Life
=10^8 operation
Electrical Operating Life No Side
1x10^5(5A@250VAC)
window
Quantity
32
Color
Red / Green selectable
Size Mm
15,3 x 11,9
Illumination
With 2 pcs. red leds or 2 pcs. green led
Fast Flashing
180 Flash / Min
Slow Flashing
60 Flash / Min.
Marking
Laser printed onto standart tracing paper, using templates provided bu Klemsan Inc.
DIMENSIONS
Frontoverall Dimensions Height Mm
144
Frontoverall Dimensions Width Mm
144
Certificates
CE
UKRAYNA
TSE
