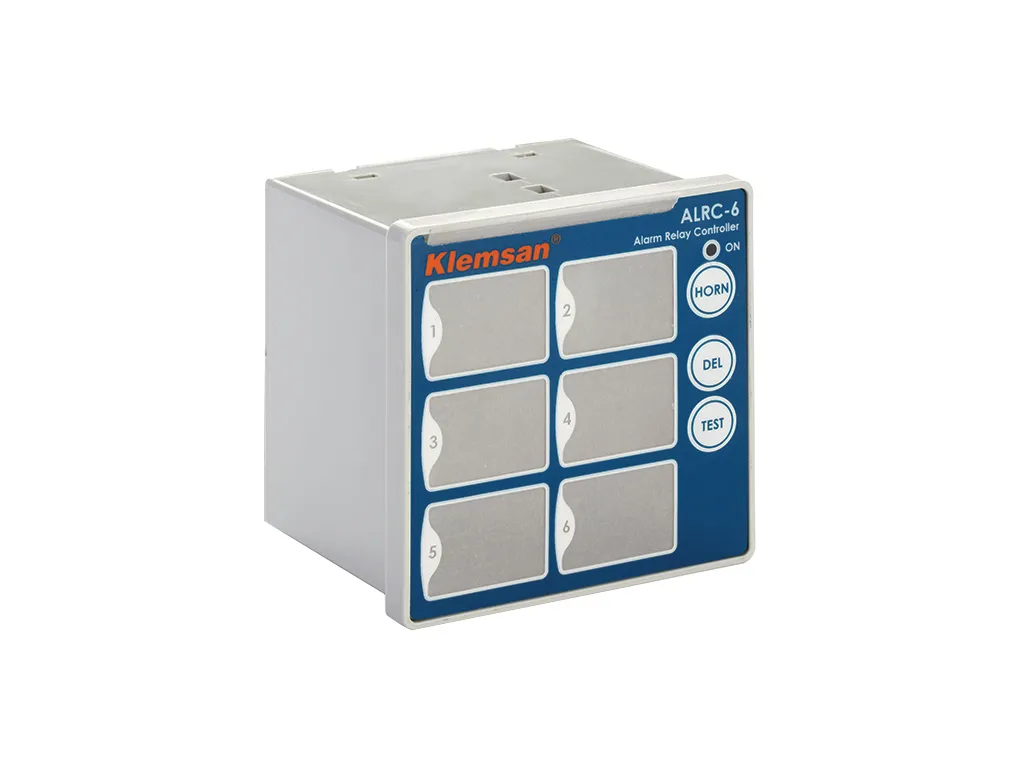

ALRC-6(110VAC/DC)
Alarm Control Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
604612
Packing Unit
1 pcs.
Customs Tariff No.
853180709000
Product Description
Alarm Control Relay
Technical Information
GENERAL
Connection Type
Screw terminal
Time Range
----
Integrated Buttons
3 (Horn, Delete, Test)
Siren
---
Real-Time Data Logging
---
Battery Life
---
Protection Class
IP50 (front)IP20 (back)
Weight (g)
274
Pack Quantity
1
Diagrams
---
Dimensions
---
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95%
COMMUNICATION
Protocol
----
Baud Rate
----
Insulation
----
INPUT SIGNAL
Voltage
AC / DC 110V
Frequency
45-65Hz
Piece
6
Response Time
25±10ms
OUTPUT CONNECTIONS
Output Type
Relay
Number of Connections
8
Type
1 NO (SPST)
Max. AC Ratings
5A/277V;1385VA
Max. DC Ratings
5A/30VDC;150W
Mechanical Service Life
=10^8 operation
Electrical Service Life (NO Contact)
1x10^5 (5A@250VAC)
Dimensions
Front Face Overall Dimensions - Height (mm)
96
Front Face Overall Dimensions - Width (mm)
96
Panel Cut-Out Dimensions - Height (mm)
89.6
Panel Cut-Out Dimensions - Width (mm)
89.6
Panel Cut-Out Dimensions - Depth (mm)
66
POWER SUPPLY
Frequency
45-65Hz
Consumption
AC/DC 110V ± %30
WINDOW
Piece
6
Color
Red
Size (mm)
30.5 x 21.6
Illumination
With 4 pcs. red leds
Fast Flashing
90 Flash / Min.
Slow Flashing
---
Marking
Laser printed onto standart tracing paper, using templates provided bu Klemsan Inc.
Certificates
CE
