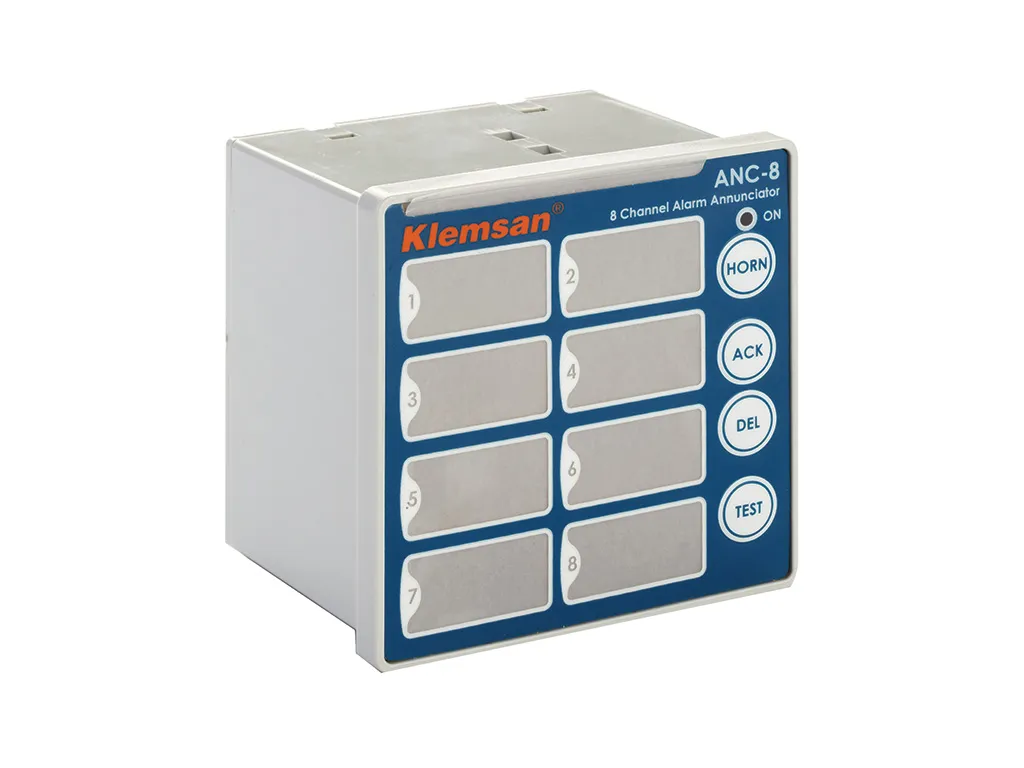

ANC-8(220VAC/DC)
Digital Alarm Annunciator
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
604623
Packing Unit
1 pcs.
Customs Tariff No.
853180709000
Weight per piece (inc. packing)
280g kg.
Product Description
Digital Alarm Annunciator
Technical Information
general
Connection Type
Screw terminal
Time Interval
0,2,5,10,15,20,25,30 adjustable
Integrated Buttons
4 (Horn, Ack, Delete, Test)
Siren
+
Real Time Data Recording
6080 logs
Battery Life
> 5 years
Protection Class
IP50 (front)IP20 (back)
Weight G
280
Packaging Quantity
1
Diagrams
---
Dimensions
---
power-supply
Voltage
<3W DC / <5VA AC
Frequency
45-65Hz
environmental-conditions
Operating Temperature
-20°C +60°C
Storage Temperature
-30°C +80°C
Relative Humidity Non Condensing
Maks. 90%
communication
Protocol
Modbus RTU
Baud Rate
1200-57600
Isolation
2500Vrms
input-signal
Voltage
220V AC / DC
Frequency
45-65Hz
Quantity
8
Response Time
25±10ms
output-connections
Output Type
Relay
Number Of Connections
2
Type
1 NO (SPST)
Max Values Ac
5A/277V;1385VA
Max Values Dc
5A/30VDC;150W
Mechanical Operating Life
=10^8 operation
Electrical Operating Life No Side
1x10^8(5A@250VAC)
window
Quantity
8
Color
Red / Green selectable
Size Mm
30.5 x 15.5
Illumination
With 4 pcs. red leds or 4 pcs. green led
Fast Flashing
180 Flash / Min
Slow Flashing
60 Flash / Min.
Marking
Laser printed onto standart tracing paper, using templates provided bu Klemsan Inc.
DIMENSIONS
Frontoverall Dimensions Height Mm
96,8
Frontoverall Dimensions Width Mm
96,8
Panel Cutout Dimensions Height Mm
89,6
Panel Cutout Dimensions Width Mm
89,6
Panel Cutout Dimensions Depth Mm
65
Certificates
CE
UKRAYNA
TSE
