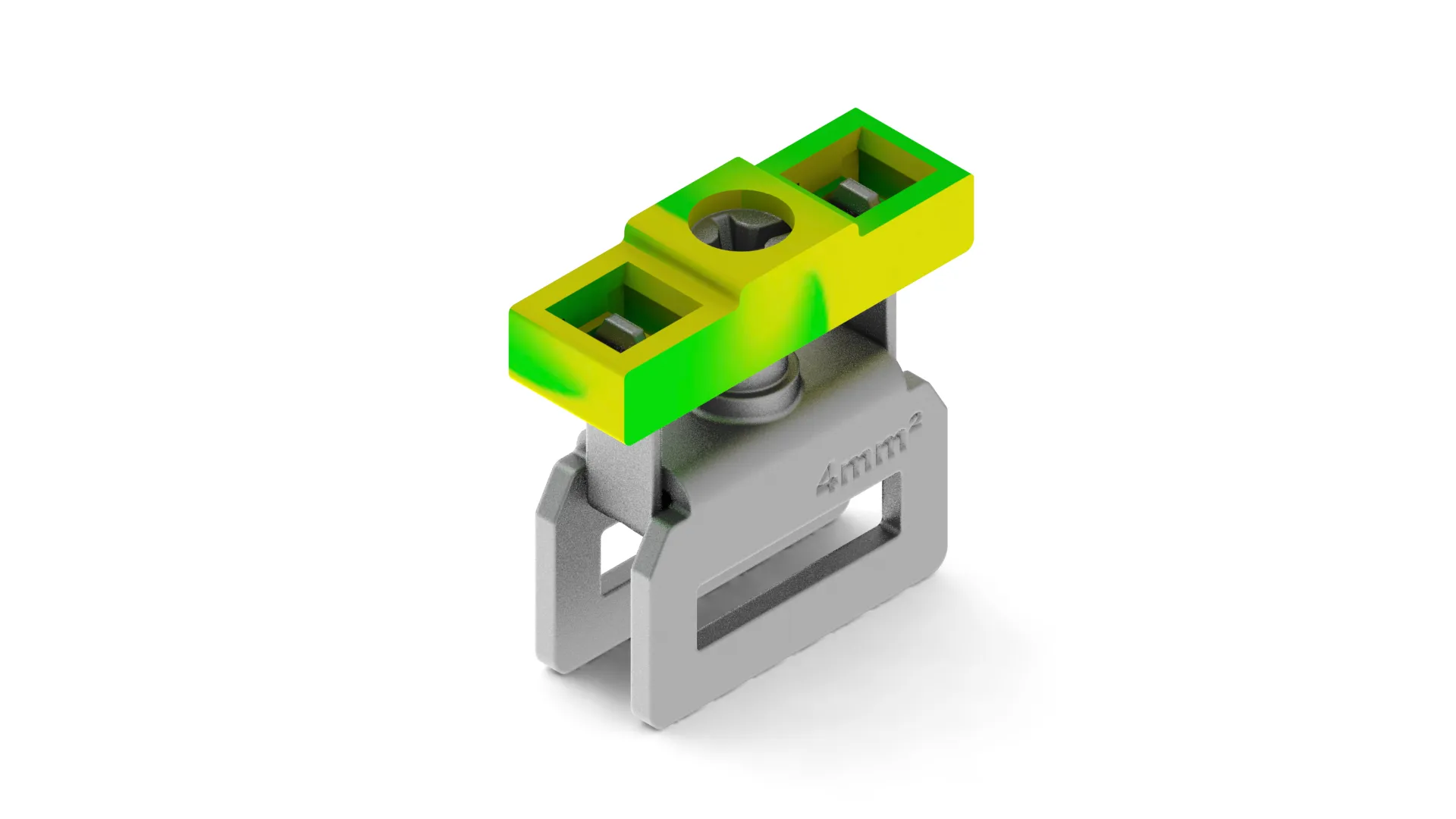

IBKN 4 Жёлто-зелёный
Зажимные скобы для шин, 4 мм²
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 50
Единица упаковки : 50 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
525442T
Единица Упаковки
50 шт.
Номер таможенного тарифа
853690950000
Вес за единицу, включая упаковку
0.0125 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Color
Yellow-Green
Insulation Material
PA
UL 94 Flammability Class
V2
Coating
Zn (Cr+3)
ELECTRICAL FEATURES
Nominal Current
32 A
Maximum Load Current
41 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
2,5 mm²
Min. Stripping Length
16 mm
Tightening Torque Min
1,5 Nm
Tightening Torque Max
1,8 Nm
Busbar Size
3x12 mm
DIMENSIONS
Width
7,00 mm
Length
25,00 mm
Сертификаты
CE
ROHS
UKCA
Аксессуары
Термоэтикетки для клемм
Код товара: 810300
D-NS 5x6
Шина
Код товара: 525310
KUB 4 Без крышки
Код товара: 525300
KUB 3 Без крышки
Код товара: 525350
KUB 3 Покрытый
Код товара: 525320
KUB 4 Покрытый
