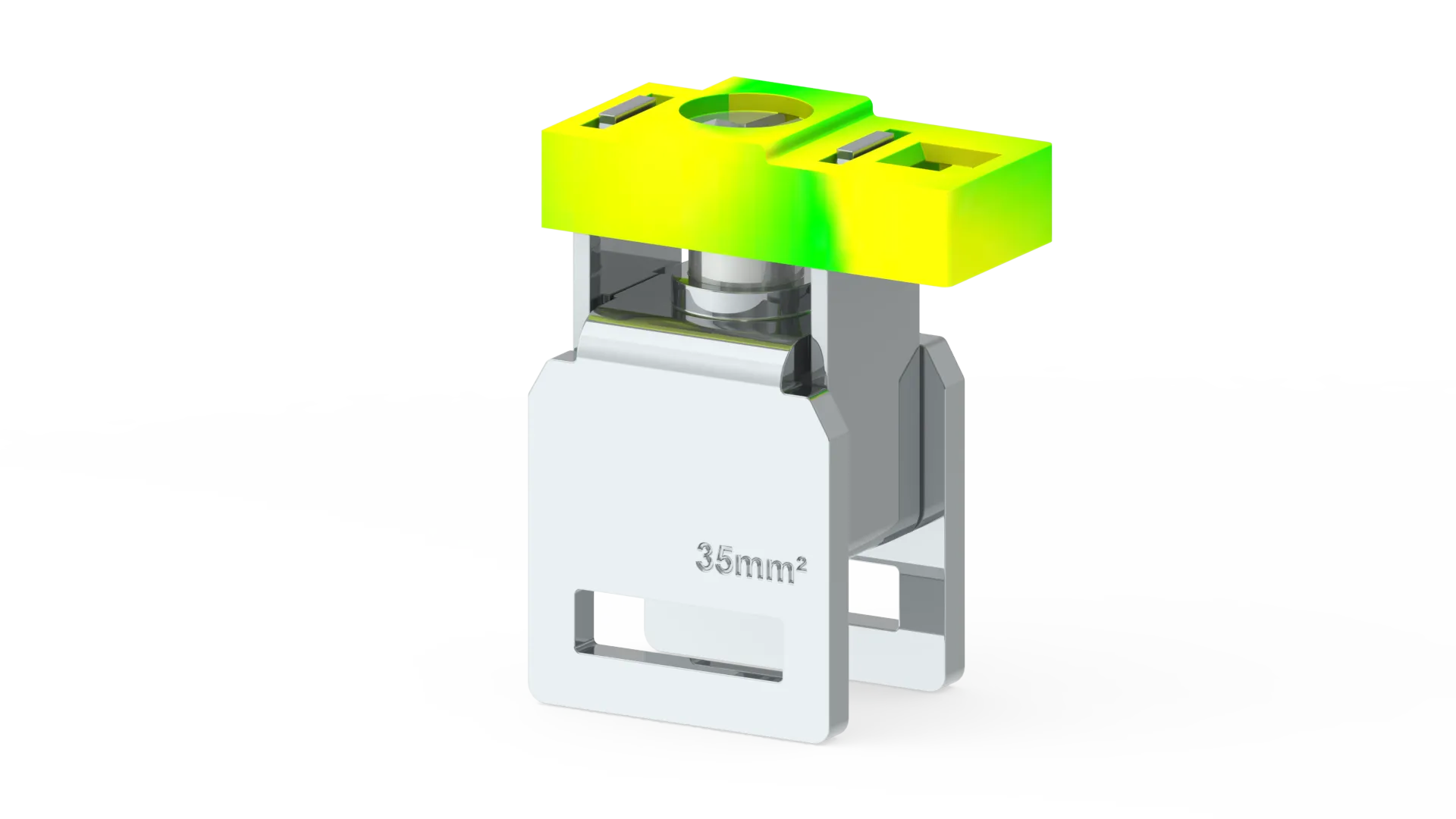

IBKN 35 Жёлто-зелёный
Зажимы для шин 35 мм²
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 50
Единица упаковки : 50 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
525462T
Единица Упаковки
50 шт.
Номер таможенного тарифа
853690950000
Вес за единицу, включая упаковку
0.0125 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Color
Yellow-Green
Insulation Material
PA
UL 94 Flammability Class
V2
Coating
Zn (Cr+3)
ELECTRICAL FEATURES
Nominal Current
125 A
Maximum Load Current
125 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
2,5 mm²
Single-core max. conductor cross-section
35 mm²
Conductor Cross Section Awgkcmil Min
14 AWG
Conductor Cross Section Awgkcmil Max
2 AWG
Multi-core min. conductor cross-section
2,5 mm²
Multi-core max. conductor cross-section
35 mm²
Multi-core min. conductor cross-section with ferrule
2,5 mm²
Multi-core max. conductor cross-section with ferrule
35 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
1,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
10 mm²
Tightening Torque Min
3,2 Nm
Tightening Torque Max
3,7 Nm
Busbar Size
3x12 mm
DIMENSIONS
Width
14 mm
Length
30 mm
Сертификаты
CE
ROHS
UKCA
Аксессуары
Термоэтикетки для клемм
Код товара: 810300
D-NS 5x6
Шина
Код товара: 525310
KUB 4 Без крышки
Код товара: 525300
KUB 3 Без крышки
Код товара: 525350
KUB 3 Покрытый
Код товара: 525320
KUB 4 Покрытый
