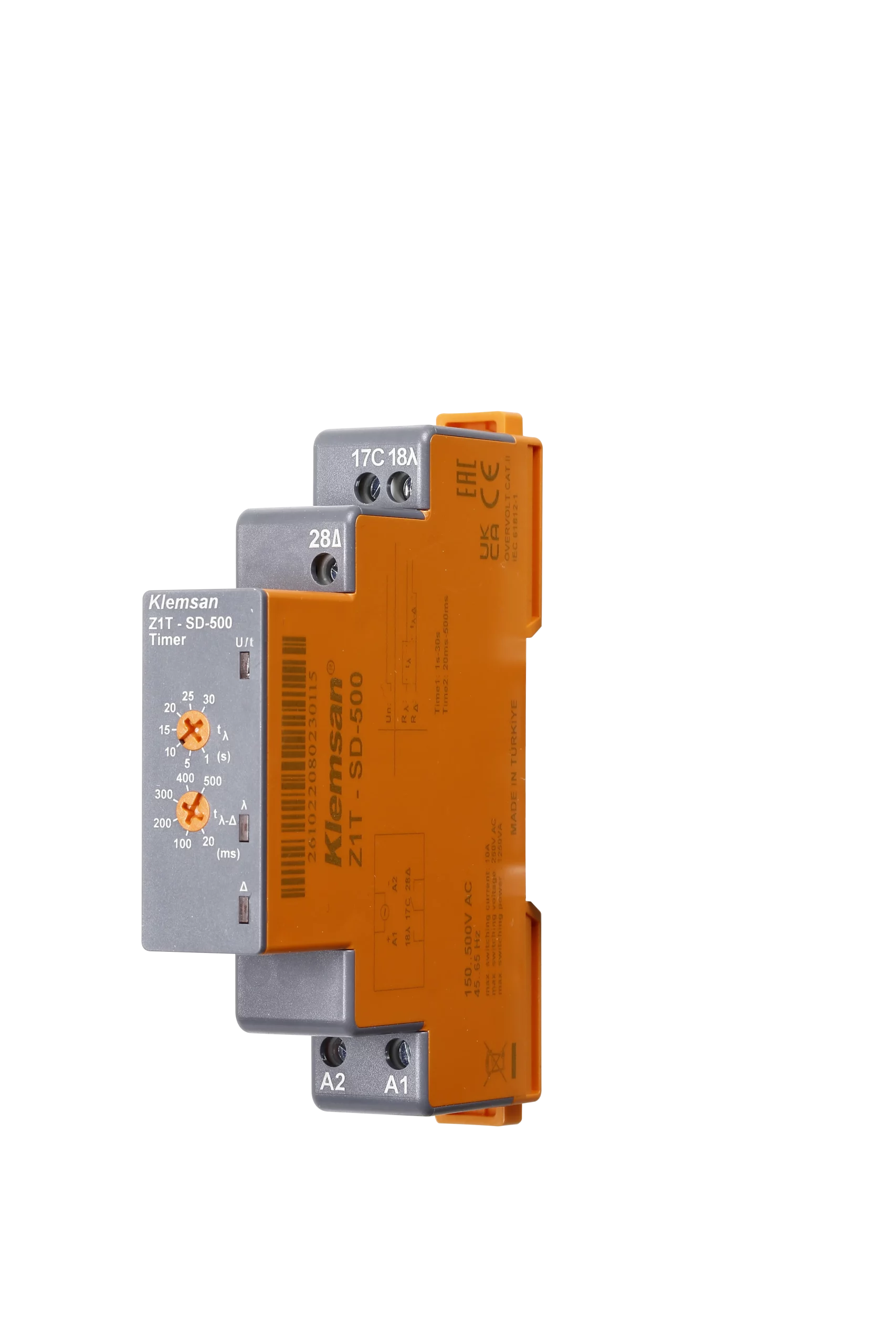

Z1T-SD-500
Timer Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
216022
Packing Unit
1 pcs.
Customs Tariff No.
853649000029
Weight per piece (inc. packing)
0.8 kg.
Product Description
Timer Relay
Technical Information
general
Connection Type
Screw terminal
Protection Class
IP20
Weight G
80
Case Width Mm
18
Mounting Type
Panel & Rail
Supply Frequency
45-65 Hz
Output Type
Relay
Functions
SD
Restore Time
Maks. 100ms
Trigger Input Voltage
----
power-supply
Voltage
12-240 VDC / 12-240 VAC
Power Consumption
150-500 VAC AC
environmental-conditions
Operating Temperature
-20 to + 60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max. 95%
backup-connections
Type
2 NO (SPST)
Max Values Ac No Side
16A/250V; 2000VA
Max Values Dc No Side
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life No Side
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
time-interval
Timing 1
0,1 sn .. 30 sn
Timing 2
20 msn .. 500 msn
Certificates
CE
UKCA
UL
