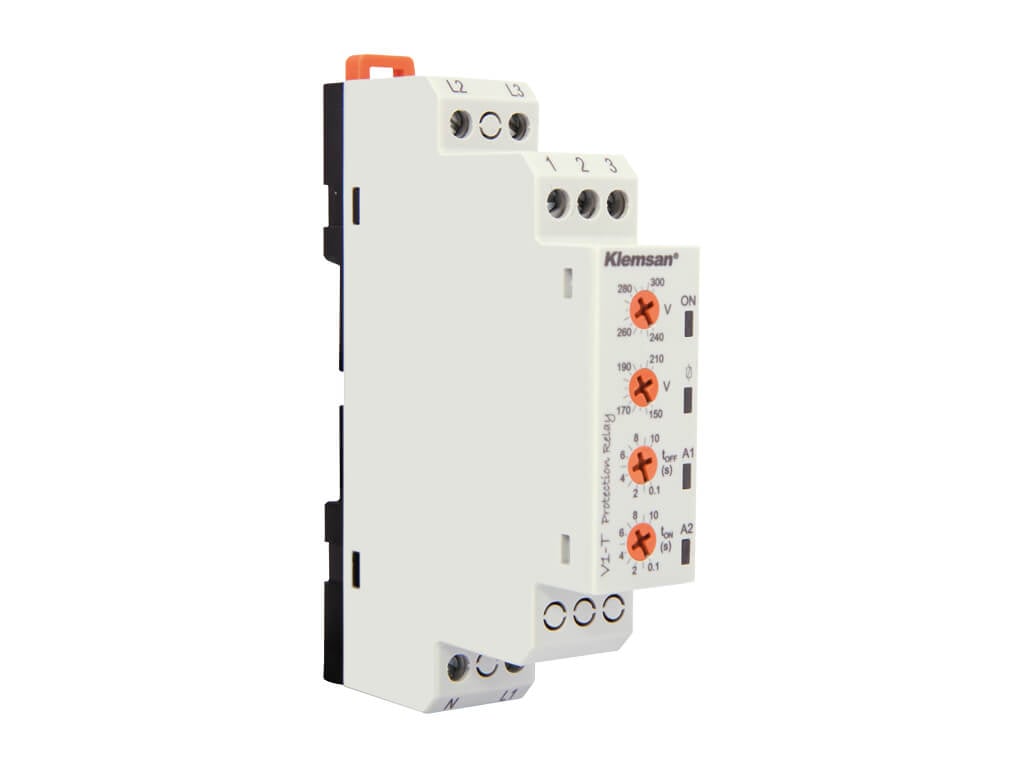

V1-T
Voltage Monitoring Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
270162
Packing Unit
1 pcs.
Customs Tariff No.
853649000029
Weight per piece (inc. packing)
0.062 kg.
Product Description
Voltage Monitoring Relay
Technical Information
general
Networks
1Ø with Neutral
Connection Type
Screw terminal
Protection Class
IP20
Weight G
62
Packaging Quantity
1
Case Width Mm
17,5
Mounting Type
--
Operating Frequency
35-70Hz
Supply Frequency
35-70Hz
Control Input Voltage Range
----
Response Time For Monitoring Any Function
Max. 250ms
Emc Emi
+
Output Type
Relay
current-measurement-input
Power Consumption
<3VA AC
power-supply
Voltage
L1-N den 85-320VAC AC
environmental-conditions
Operating Temperature
-20 / +60 °C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Maks. 95% (no condensation)
backup-connections
Type
1 C/O (SPDT)
Max Values Ac No Side
5A/250V; 1250VA
Max Values Dc No Side
5A/30VDC
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life No Side
"5×10^4(5A@250VAC) 1×10^4(5A@30VDC)"
phase-absence
Fixed Delay Time
500ms
adjustable-voltage-protection
Upper Limit
240 - 300VAC (L-N)
Lower Limit
150 - 210VAC (L-N)
Hysteresis
6 VAC
Delay Time
Off delay çalisma için 0.1sn - 10sn arasi
adjustableexcessive-high---low-voltage-protection
Upper Limit
310VAC (L-N)
Lower Limit
140VAC (L-N)
Hysteresis
6VAC
Delay Time
100ms
ptc-protection
Fixed Delay Time
--
Threshold
--
Certificates
CE
UKCA
UL
