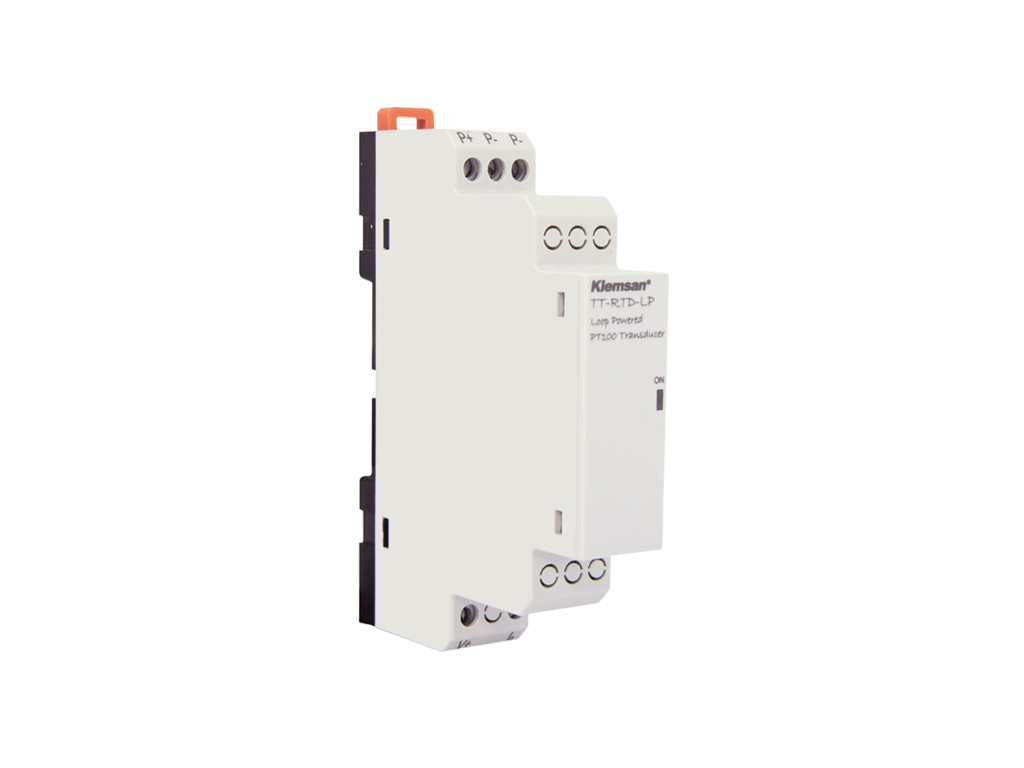

TT-RTD-LP (0 – 200)
Non-isolated PT100 Transducer
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
603863
Packing Unit
1 pcs.
Customs Tariff No.
854370900019
Weight per piece (inc. packing)
0.042 kg.
Product Description
Non-isolated PT100 Transducer
Technical Information
general
Connection Type
Screw terminal
Protection Class
IP20
Weight G
42
Packaging Quantity
1
Dimensions
--
Case Width Mm
17,5
Mounting Type
Panel or Rail
Measurement Error Full Scale
< 0.1% (Full Scale)
Response Time
< 20ms
Temperature Coefficient
= 0.02%/°C
Insulation Resistance
---
Sensor Fault Indication
3.1 mA (1 wire is broken), 24.6 mA (at least 2 wires are broken)
power-supply
Voltage
10-30V DC
environmental-conditions
Operating Temperature
-20°C +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max. 95%
emc-emi
Radiated Emission Test 61000 6 2ac
2012, 61000-6-4
output
Output Signal
4-20mA
Linear Output Range
3.6mA - 23.6mA
Max Load
= 750 Ohm
Ripple
20 mVPP (@ 750 Ohm)
input
Sensor Type
PT100
Connection Method
2 wire or 3 wire
Temperature Measuring Range
0°C +200°C
Sensor Output Current
<0.6mA
Certificates
CE
UKCA
UL
