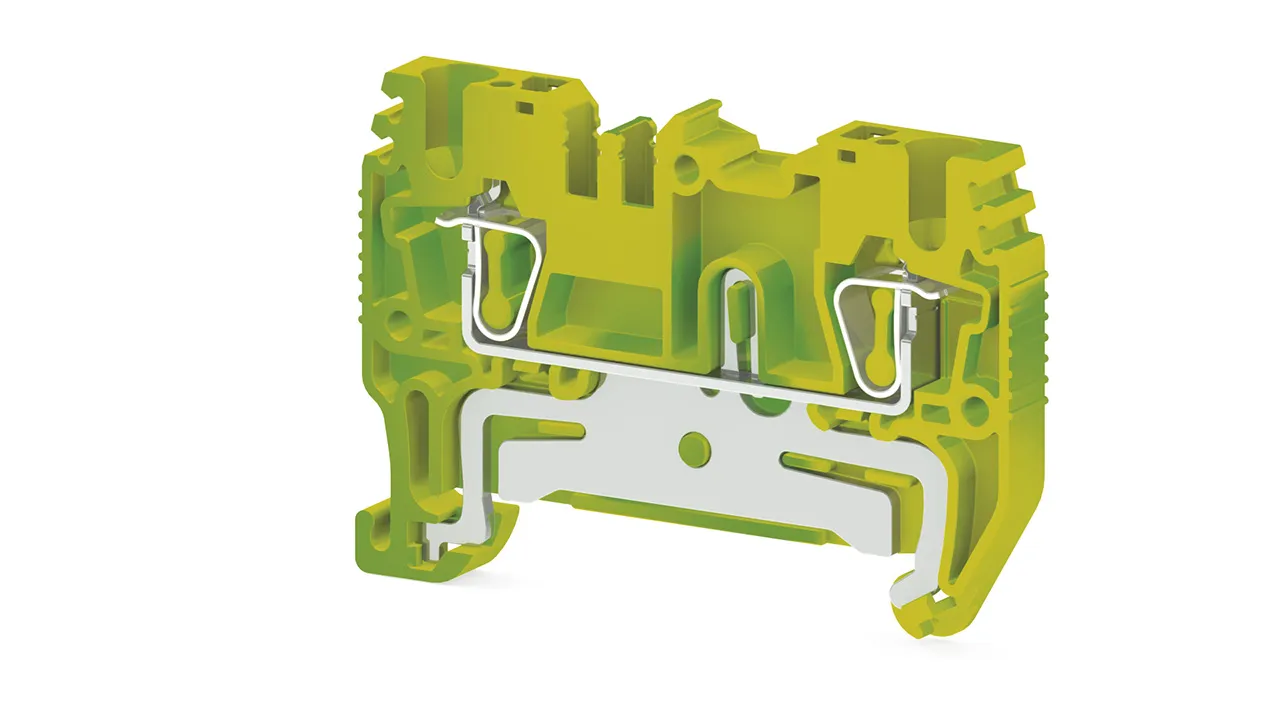

SRD 2,5T Yellow-Green
1.5mm² Cage Clamp Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
337120
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.011888 kg.
Product Description
1.5mm² Cage Clamp Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A4
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
1 mm²
DIMENSIONS
Width
6,2 mm
Length
60,10 mm
Height Mr 35x75
38,30 mm
Height MR 35x15
45,80 mm
Certificates
cULus
ATEX
CE
ROHS
UKCA
cULusConductor Cross-section
AWG 28-10
