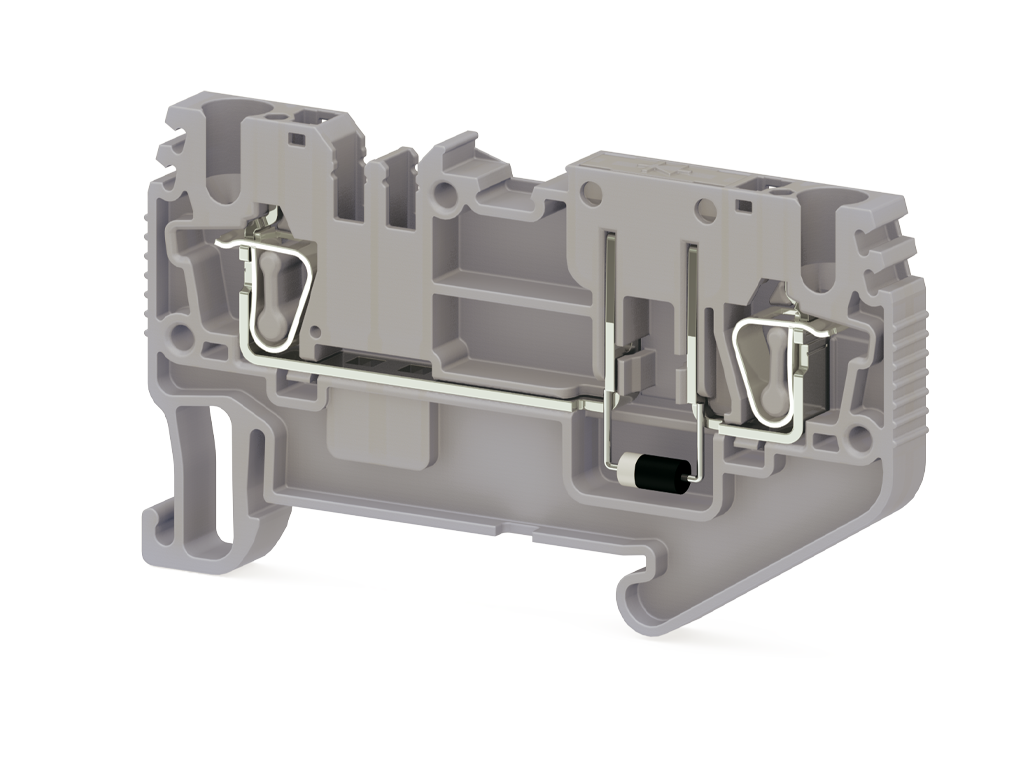

SRD 2,5 AD-B
2.5mm², Cage Clamp, 1 Input 1 Output, Diode Component Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
311259
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00884 kg.
Product Description
2.5mm², Cage Clamp, 1 Input 1 Output, Diode Component Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL1 - HL2 - HL3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
Note
Max. current is determined by the diode. 1N 4007 diode, reverse voltage
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
1 A
Nominal Voltage
500 V
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5,2 mm
Length
65,40 mm
Height Mr 35x75
37,30 mm
Height MR 35x15
44,80 mm
Certificates
cULus
ATEX
CE
UKCA
ROHS
cULusConductor Cross-section
AWG 12-28
Nominal Current
1A
Nominal Voltage
300V
ATEXNominal Current
0,5A
Nominal Voltage
350V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Test Sockets
Product Code: 493020
TF (Ø 2)
Terminal Thermal Printer Labels
Product Code: 810450
D-NS 5,2x6
Cover
Product Code: 451159
NPP/SRD 2,5E Grey
Separation Plate
Product Code: 464079
APP/SRD 2,5E Grey
Plug-In Cross Connector
End Stop
Product Code: 497009
KD 3/NM Grey
Product Code: 497019
KD 4/NM Grey
Product Code: 497059
KD 7/NM Grey
Product Code: 497069
KD 8/NM Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
