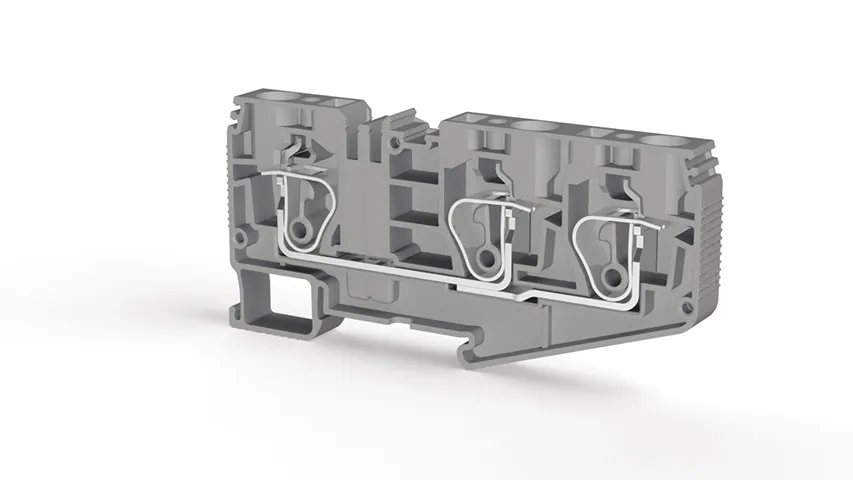

SRD 10E Grey
Cage Clamp Type, 10 mm² 1 input-2 output feed through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
312229
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0404 kg.
Product Description
Cage Clamp Type, 10 mm² 1 input-2 output feed through terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
3
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
57 A
Nominal Voltage
1000 V
Maximum Load Current
63 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
16 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
10 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
10 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
2,5 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal cylindrical indicator
A6
DIMENSIONS
Width
10,00 mm
Length
103,3 mm
Height Mr 35x75
49,60 mm
Height MR 35x15
57,10 mm
Certificates
CSA
cULus
VDE
ATEX
CE
UKCA
CSAConductor Cross-section
AWG 20-6
Nominal Current
60 A
Nominal Voltage
600 V
cULusNominal Current
57 A
Nominal Voltage
690 V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561160
KT-D 4 (0,8 x Ø4,0)
Test Sockets
Product Code: 493023
TF (Ø 2,3)
Terminal Thermal Printer Labels
Product Code: 813100
D-NS 10x10
Cover
Product Code: 451299
NPP/SRD 10E Grey
Separation Plate
Product Code: 464219
APP/SRD 10E Grey
Plug-In Cross Connector
End Stop
Product Code: 497009
KD 3/NM Grey
Product Code: 497019
KD 4/NM Grey
Product Code: 497059
KD 7/NM Grey
Product Code: 497069
KD 8/NM Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
