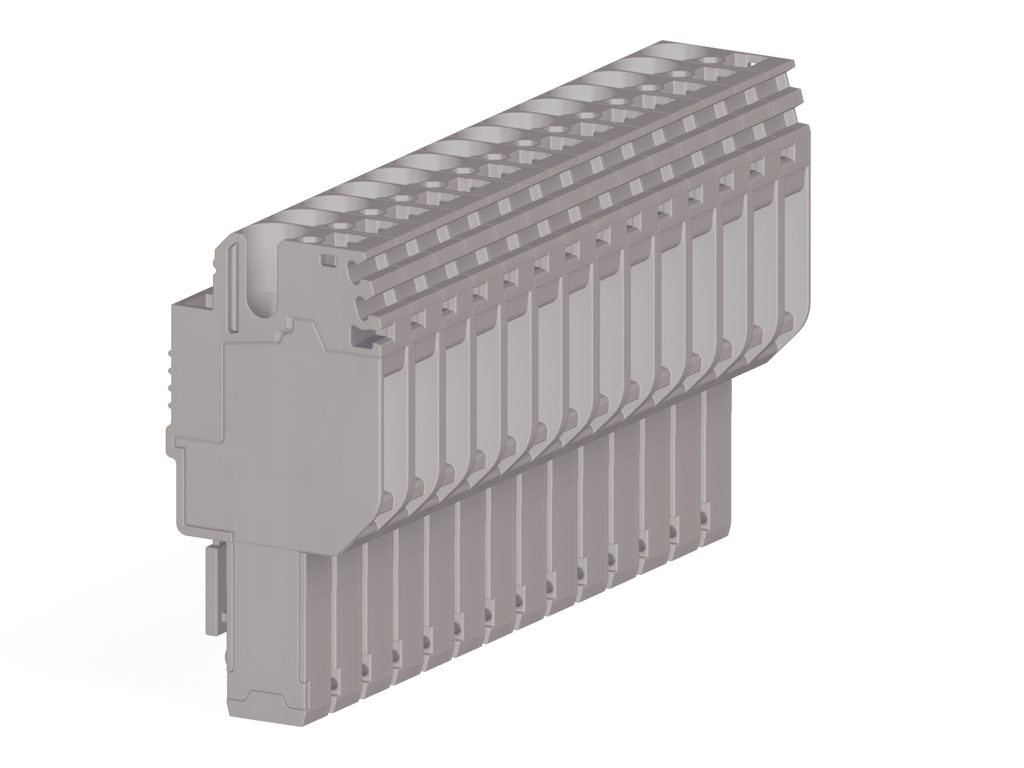

SG-PT 2,5CS/13 Grey
2.5mm² Cage Clamp 1-Pole 13-Group Female Socket (suitable for cross connector)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
310509
Packing Unit
10 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.048 kg.
Product Description
2.5mm² Cage Clamp 1-Pole 13-Group Female Socket (suitable for cross connector)
Technical Information
PRODUCT FEATURES
Number of Connections
13
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 61984 / IEC 60947-7-1
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
24 A
Nominal Voltage
500 V
Maximum Load Current
24 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
0,5 mm²
DIMENSIONS
Width
67,6 mm
Length
20,8 mm
Height
41,9 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 28-12
Nominal Current
20 A
Nominal Voltage
300 V
Accessories
Screwdrivers
Product Code: 561130
KT-D 1 (0,4 x Ø2,5)
Test Sockets
Product Code: 493020
TF (Ø 2)
Terminal Thermal Printer Labels
Product Code: 810450
D-NS 5,2x6
End Stop
Plug-In Cross Connector
Terminal Strip Labels
Product Code: 1020110
SLF-P2 W 4,9mm x 15m
