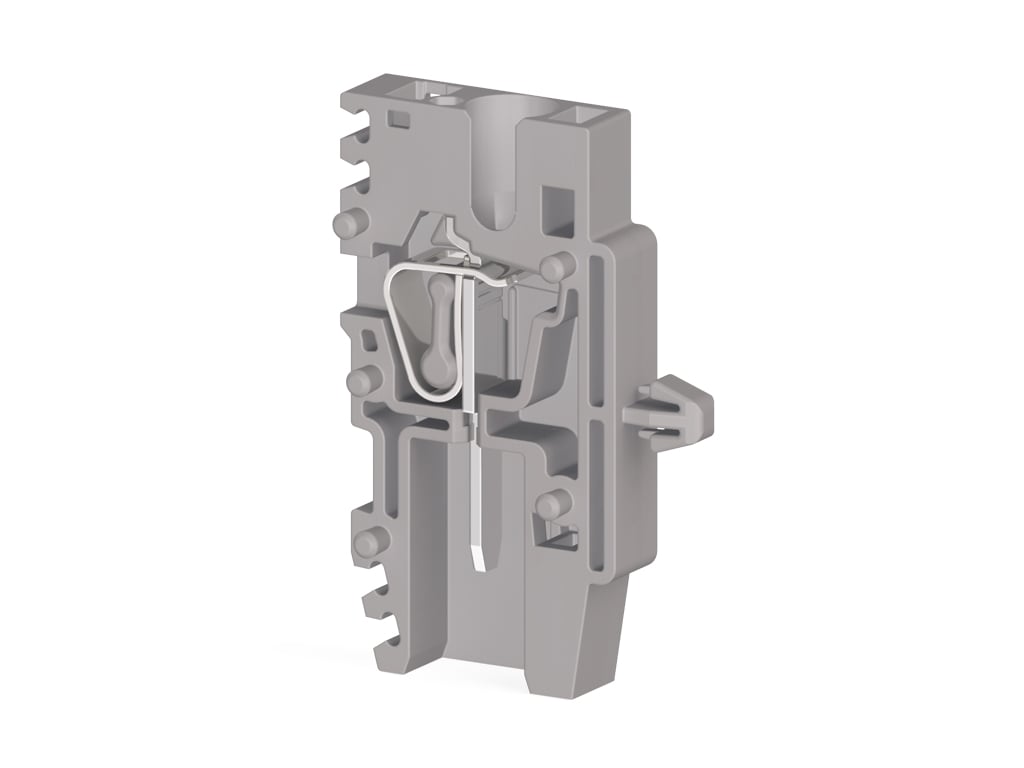

SC-PTS 2,5
Socket Type for airbone, 2,5 mm² terminal block (suitable for StoP Series)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
310939
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0032 kg.
Product Description
Socket Type for airbone, 2,5 mm² terminal block (suitable for StoP Series)
Technical Information
PRODUCT FEATURES
Number of Connections
1
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1/IEC 61984
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
24 A
Nominal Voltage
500 V
Maximum Load Current
24 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5,2 mm
Length
35,00 mm
Height
16,90 mm
Diameter
3,5 mm
Certificates
cULus
UKCA
CE
ROHS
cULusConductor Cross-section
AWG 28-12
Nominal Current
20 A
Nominal Voltage
300 V
Accessories
Test Sockets
Product Code: 493020
TF (Ø 2)
Terminal Thermal Printer Labels
Product Code: 810450
D-NS 5,2x6
Cover
Product Code: 451119
NPP/SCPT 2,5 Grey
Marking
Product Code: 469027
SG-N Orange
Terminal Strip Labels
Product Code: 1020110
SLF-P2 W 4,9mm x 15m
