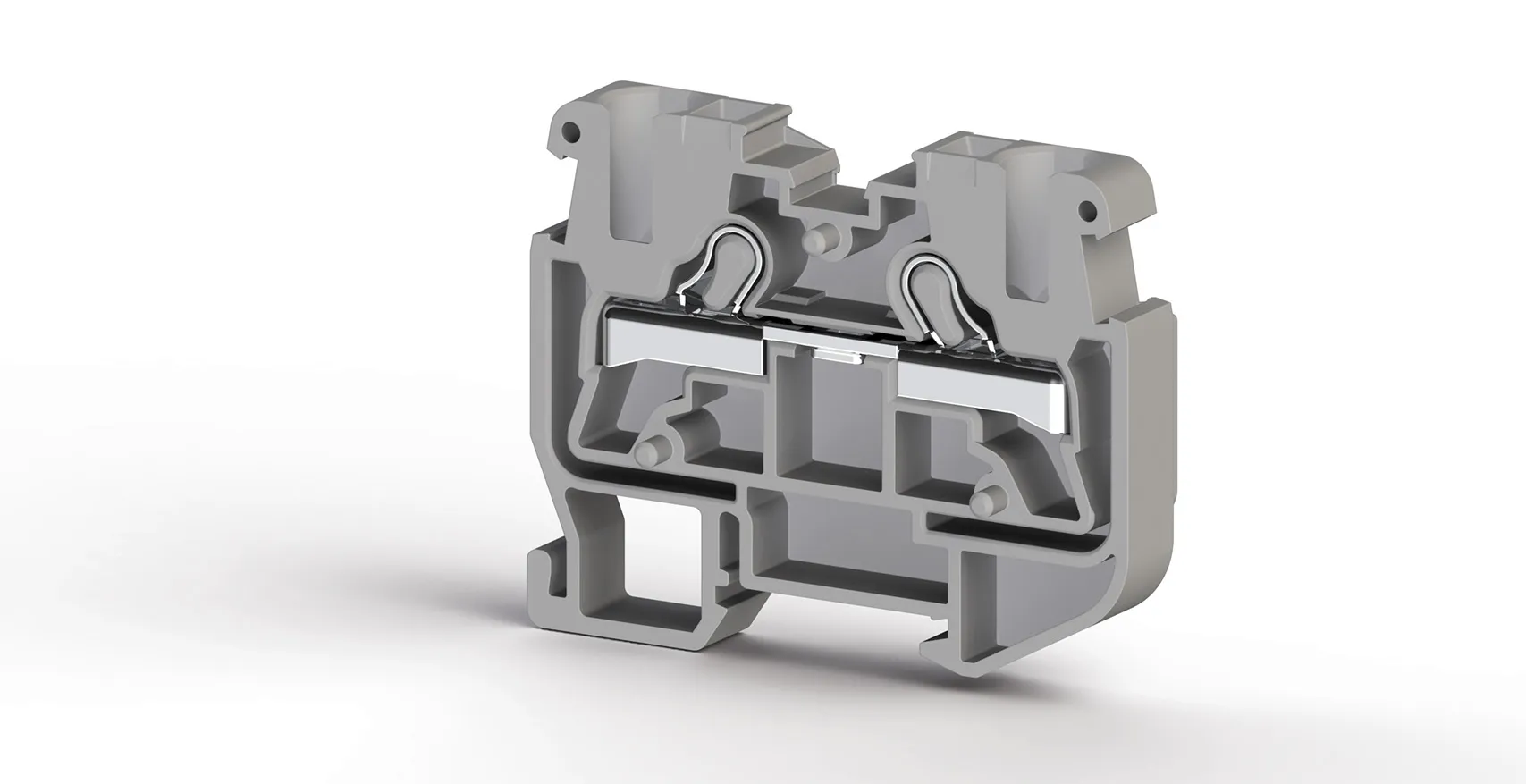

PYKM 2,5
Push-in Type, 2,5 mm² feed-through mini terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307399
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0052 kg.
Product Description
Push-in Type, 2,5 mm² feed-through mini terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
24 A
Nominal Voltage
800 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,34 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,34 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5 mm
Length
37,70 mm
Height Mr 15x55
31,70 mm
Certificates
cULus
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
600 V
Accessories
Zinc Coated
Product Code: 500610
MR 15x5.5 Straight (1m) Zinc Coated Rail
Product Code: 500611
MR 15x5.5 Slotted (1m) Zinc Coated Rail
Product Code: 500612
MR 15x5.5 Straight (2m) Zinc Coated Rail
Product Code: 500613
MR 15x5.5 Slotted (2m) Zinc Coated Rail
Screwdrivers
Product Code: 561130
KT-D 1 (0,4 x Ø2,5)
Terminal Blocks
End Stop
Product Code: 495069
KD 5 Grey
Cover
Product Code: 446589
NPP 1/PYKM Grey
Product Code: 446599
NPP 2/PYKM Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
