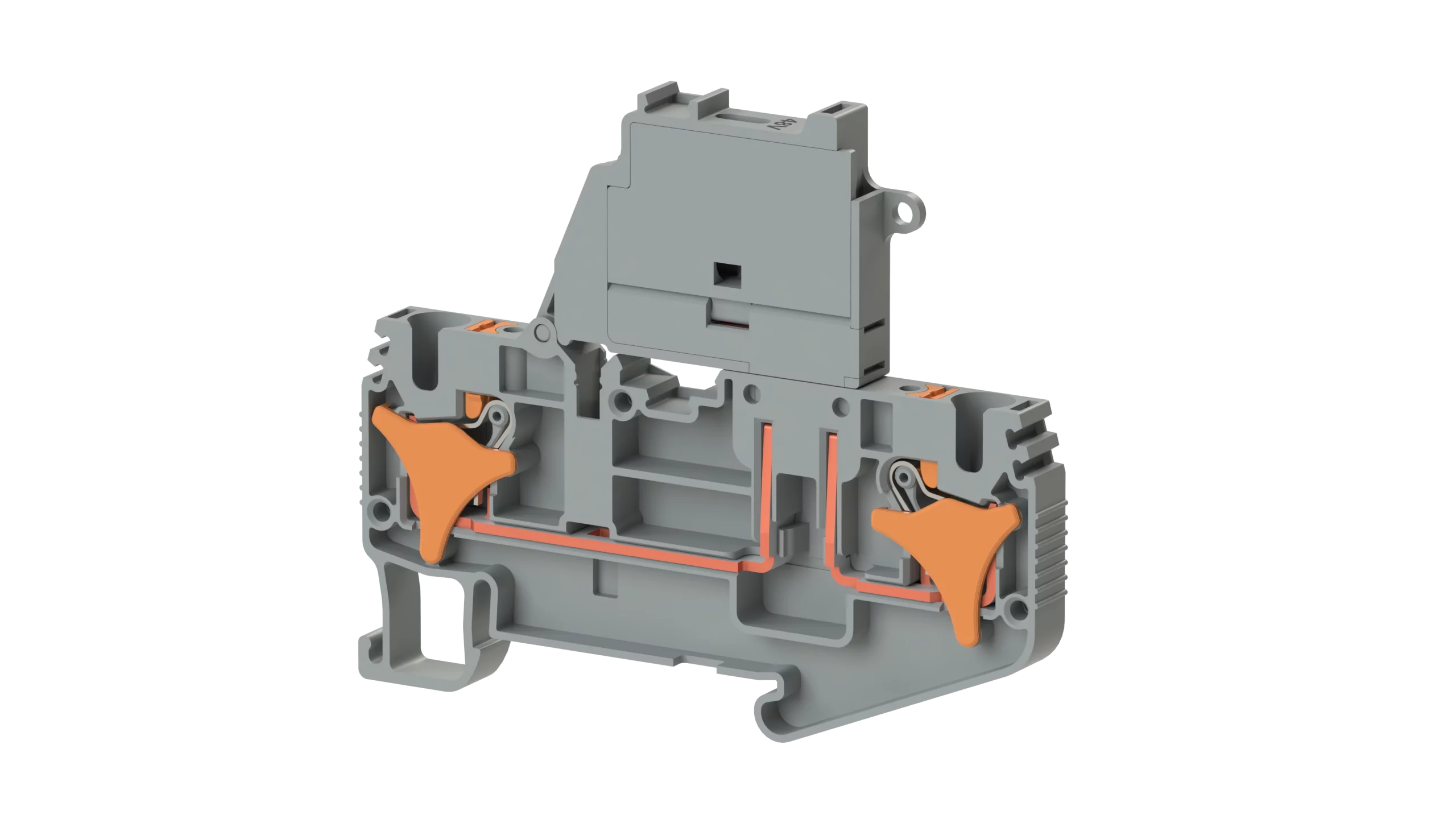

PRD 4SLD 48V AC/DC Grey
4 mm² Push-in 2-pole Fuse Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
329399
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Product Description
NULL
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Gri
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-3
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
Fuse
G / 5x20
Fuse Type
Glass
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
10 A (at 4 mm²) A
Nominal Voltage
48 V
Maximum Load Current
A
CONNECTION DATA
Connection Type
Push-in connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A4
DIMENSIONS
Width
6,2 mm
Length
76,60 mm
Height Mr 35x75
64,80 mm
Height MR 35x15
72,30 mm
Certificates
CE
ROHS
UKCA
cULus
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561150
KT-D 3 (0,6 x Ø3,5)
Test Sockets
Product Code: 493020
TF (Ø 2)
Terminal Thermal Printer Labels
Product Code: 810600
D-NS 6,2x6
Cover
Product Code: 451199
NPP/SRD 4E Grey
Separation Plate
Product Code: 464129
APP/SRD 4E Grey
Plug-In Cross Connector
End Stop
Product Code: 497009
KD 3/NM Grey
Product Code: 497019
KD 4/NM Grey
Product Code: 497059
KD 7/NM Grey
Product Code: 497069
KD 8/NM Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
