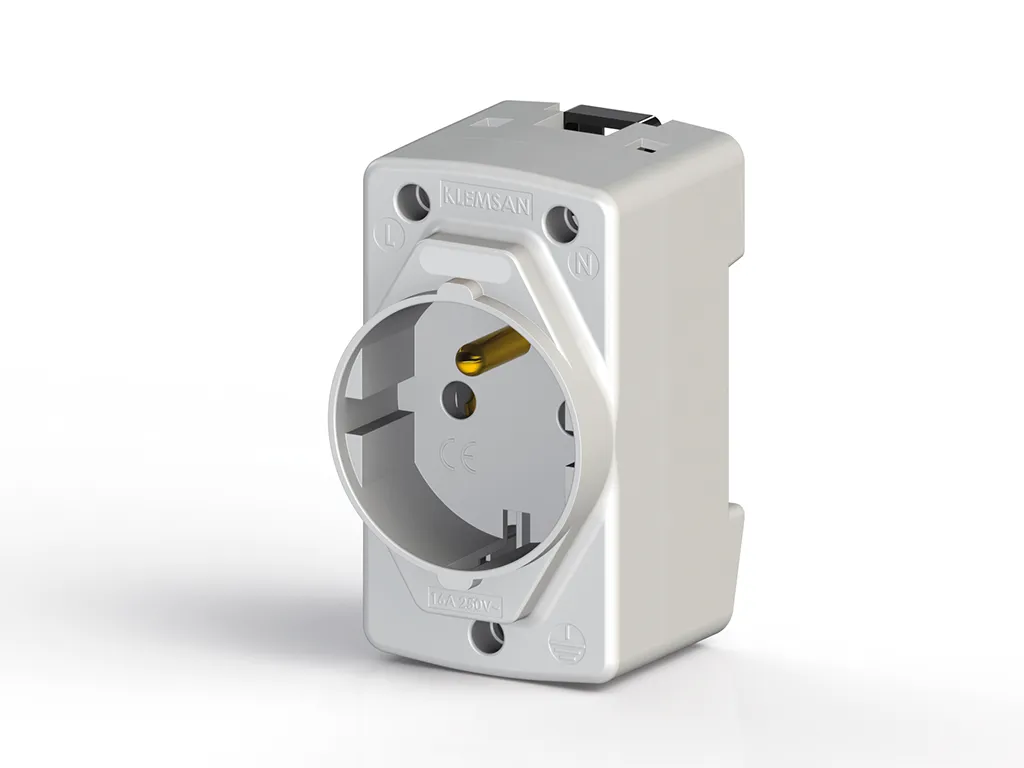

PAP U Grey
UPS Panel socket
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 6
Packing unit : 6 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
670300
Packing Unit
6 pcs.
Customs Tariff No.
853669900018
Weight per piece (inc. packing)
0.07 kg.
Product Description
UPS Panel socket
Technical Information
PRODUCT SPECIFICATIONS
Color
Bil.Grey
Insulation Material
PC
UL 94 Flammability Class
V2
Continuous Operating Temperature Max.
60 °C
Continuous Operating Temperature Min.
-20 °C
ELECTRICAL SPECIFICATIONS
Nominal Current
16 A
Nominal Voltage
250 V
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,5 mm²
Max. Solid Conductor Cross-Sectional Area
10 mm²
Conductor Cross-Section AWG/kcmil Min.
20 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area
10 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
6 mm²
Min. Stripping Length
10 mm
Tightening Torque Min.
0,8 Nm
Tightening Torque Max.
1,2 Nm
DIMENSIONS
Width
42 mm
Length
74,80 mm
Height MR 35x7.5
49 mm
Height MR 35x15
56,50 mm
Certificates
CE
ROHS
UKCA
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
