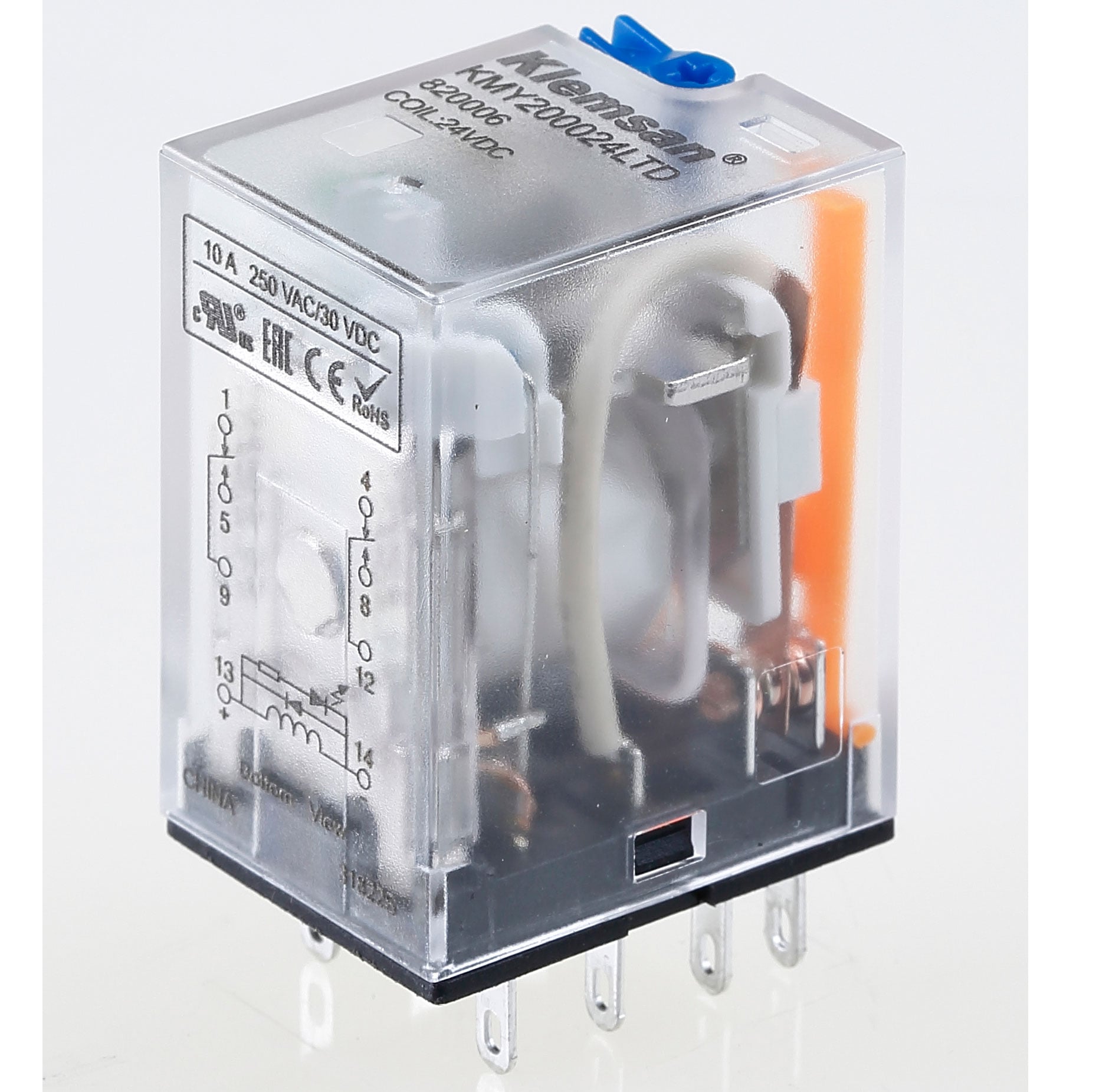

KMY200024LTD
24 VDC, 2CO, 10A, LED, TEST B., DIODE Industrial Relay
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
820006
Packing Unit
20 pcs.
Customs Tariff No.
853641900000
Weight per piece (inc. packing)
0.034 kg.
Product Description
24 VDC, 2CO, 10A, LED, TEST B., DIODE Industrial Relay
Technical Information
PRODUCT FEATURES
Operating Temperature
-55°C ~ +70°C °C
ELECTRICAL FEATURES
Input Voltage
24 VDC
Pick Up Voltage 23c
DC
Drop Out Voltage 23c
DC
Coil Operating Power
DC (W) = 0,9
Nominal Voltage
24 VDC
Coil Resistance
640 Ohm
Nominal Voltage
VAC
Insulation Resistance
=1000M Ohm (500VDC)
Led
+
Test Button
+
Diode
+
environmental-conditions
Relative Humidity Non Condensing
%5 ~ %85
dielectric-strength
Between Contacts And Coil
2000VAC / 1 min (leakage current 1mA) V/min
Between Contacts
1000VAC / 1 min (leakage current 1mA) V/min
Operate Time
(at nom. voltage) ≤20ms
Release Time
(at nom. voltage) ≤20ms
Certificates
Accessories
Accessories
Product Code: 820070
KS 2CO ECO SOCKET
Product Code: 820350
LB/KS-ECO
