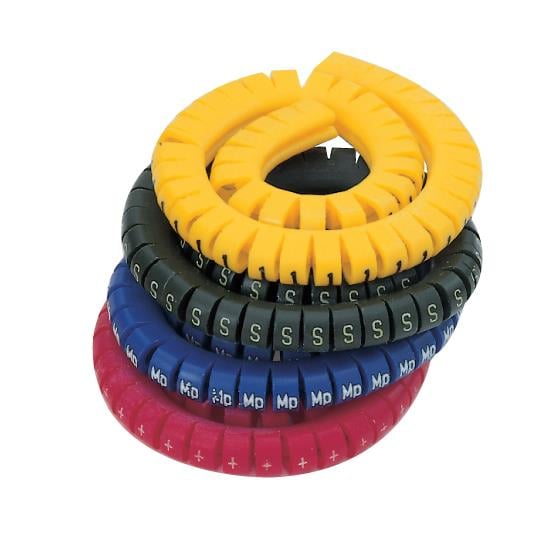

KG 1 (Z)
Cable marking label, closed type, printed (Z), suitable for cable cross-section of 0,75–4 mm²
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1000
Packing unit : 1000 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
515035
Packing Unit
1000 pcs.
Customs Tariff No.
392690979018
Weight per piece (inc. packing)
0.00006 kg.
Product Description
Cable group label
Technical Information
PRODUCT SPECIFICATIONS
Color
Sari
Insulation Material
PVC
UL 94 Flammability Class
V0
Continuous Operating Temperature Max.
70 °C
Continuous Operating Temperature Min.
-30 °C
Rub Resistance
EN 60068-2-70
Rub Resistance of Test Markings
ASTM D 4329
Salt Spray Test Duration
96h / ISO 9227 NSS
CONNECTION DATA
Min. Solid Conductor Cross-Sectional Area
0,75 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Min. Stranded Conductor Cross-Sectional Area
0,75 mm²
Max. Stranded Conductor Cross-Sectional Area
4 mm²
DIMENSIONS
Length
4,6 mm
Yükseklik
5,5 mm
Diameter
2-4,5 mm
Certificates
CE
ROHS
UKCA
