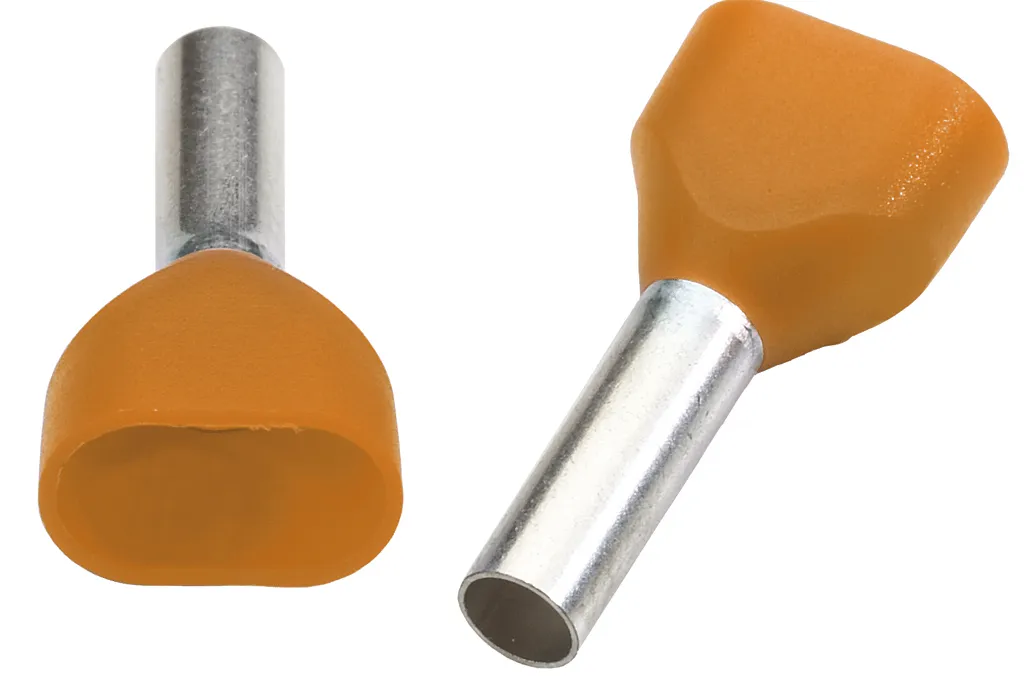

IKY 2×0.75/8
Twin Cord end Terminals
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 500
Packing unit : 500 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
572020
Packing Unit
500 pcs.
Customs Tariff No.
853690100000
Weight per piece (inc. packing)
0.0002024 kg.
Product Description
Twin Cord end Terminals
Technical Information
PRODUCT FEATURES
Color
White
UL 94 Flammability Class
V2
Connection According to Standard
DIN 46228
Continuous Operating Temperature max.
105 °C
Continuous Operating Temperature min.
-40 °C
Material
PA 66
CONNECTION DATA
Conductor Cross Section Awgkcmil Max
20x2 AWG
Multi-core max. conductor cross-section
0.75x2 mm²
Stripping Length
9.5 mm
DIMENSIONS
D1
1.8 mm
D2
5 mm
S1
0.15 mm
L1
15 mm
L2
8 mm
Certificates
UKCA
ROHS
CE
