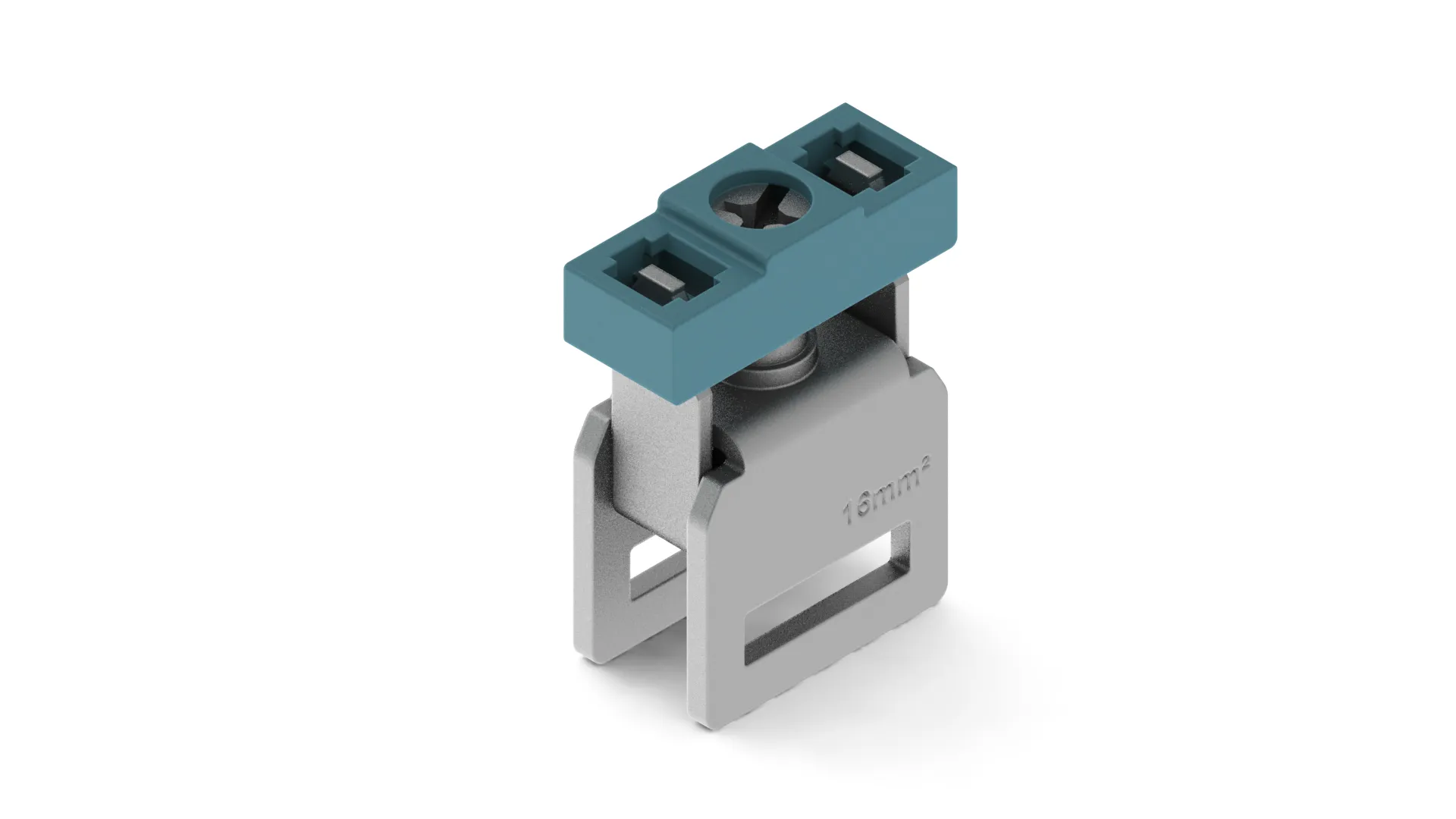

IBKN 16 Blue
16 mm² Clamping Yokes for Busbars
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
525451
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0125 kg.
Product Description
16 mm² Clamping Yokes for Busbars
Technical Information
PRODUCT FEATURES
Color
Blue
Insulation Material
PA
UL 94 Flammability Class
V2
Coating
Zn (Cr+3)
ELECTRICAL FEATURES
Nominal Current
76 A
Maximum Load Current
76 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
15 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
16 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
1,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
10 mm²
Min. Stripping Length
16 mm
Tightening Torque Min
2,5 Nm
Tightening Torque Max
3 Nm
Busbar Size
3x12 mm
DIMENSIONS
Width
10 mm
Length
23,50 mm
Certificates
CE
ROHS
UKCA
Accessories
Terminal Thermal Printer Labels
Product Code: 810300
D-NS 5x6
Terminal Blocks
Product Code: 505330
DG 6/5
Busbar
Product Code: 525310
KUB 4 Wihout coverage
Product Code: 525300
KUB 3 Wihout coverage
Product Code: 525350
KUB 3 Kaplamali
Product Code: 525320
KUB 4 Kaplamali
