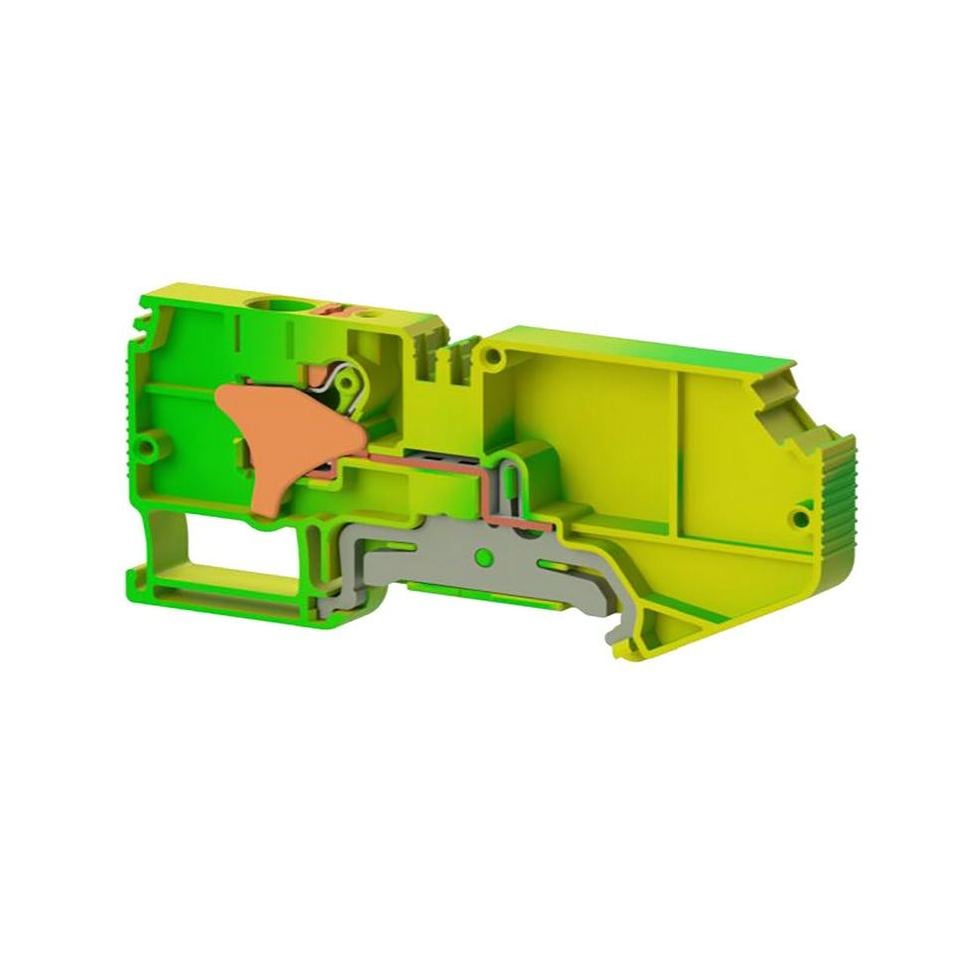

DS 6T K1
6 mm² 1-pole grounded main line terminal block.
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 16
Packing unit : 16 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
337760
Packing Unit
16 pcs.
Customs Tariff No.
853690950000
Product Description
6 mm² 1-pole grounded main line terminal block.
Technical Information
PRODUCT FEATURES
Number of Connections
1
Color
Yellow-Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
CONNECTION DATA
Connection Type
Push-in connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
6 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal cylindrical indicator
A5
DIMENSIONS
Width
8,0 mm
Length
103,27 mm
Height Mr 35x75
41,95 mm
Height MR 35x15
49,45 mm
Certificates
