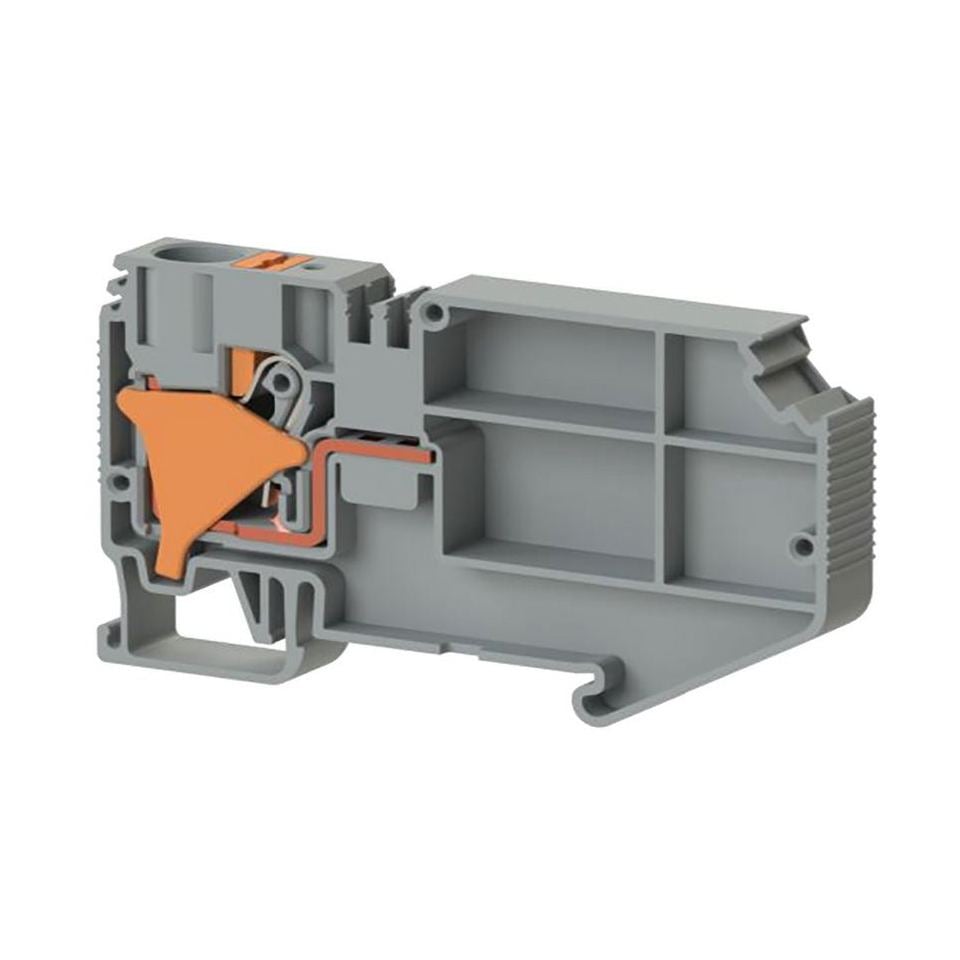

DS 10F K2,5 (Grey)
10 mm² single-phase single-pole main line terminal block.
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 16
Packing unit : 16 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
328939
Packing Unit
16 pcs.
Customs Tariff No.
853690950000
Product Description
10 mm² single-phase single-pole main line terminal block.
Technical Information
PRODUCT FEATURES
Number of Connections
1
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
57 A (at 10 mm²) A
Nominal Voltage
800 V
Maximum Load Current
65 A (with 16 mm² conductor cross section) A
CONNECTION DATA
Connection Type
Push-in connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
16 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
10 mm²
Multi-core min. conductor cross-section with ferrule
0,25wq mm²
Multi-core max. conductor cross-section with ferrule
10 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
2,5 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal cylindrical indicator
A6
DIMENSIONS
Width
10 mm
Length
85,10 mm
Height Mr 35x75
49,70 mm
Height MR 35x15
57,20 mm
Certificates
