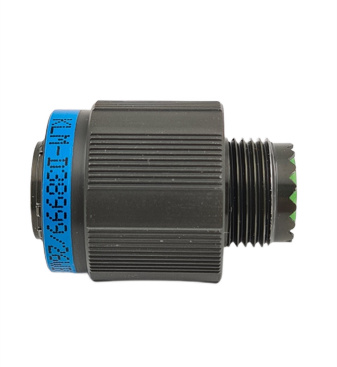

D38999/26WF18PE
Cable type connector
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
936WF18PE
Packing Unit
1 pcs.
Product Description
Cable type connector
Technical Information
PRODUCT FEATURES
Continuous Operating Temperature max.
175 °C
Continuous Operating Temperature min.
65 °C
Features
MIL-DTL-38999
Connector Type
Plug
Housing Size
19(F)
Number Of Contacts
18 Ad.
Placement
F-18
Housing Material
Aluminium
Housing Color
Khaki Green
Housing Coating
Cadmium
Contact Type
Pin (14#22) (4#8Twinax)
Wire Gauge
28,26,24,22 AWG
Contact Material
Au/Cu
Ingress Protection
IP67
Sealing Material
Silicon
Emi Shielding
+
Mating Cycles
500
Polarization
E
Service Rating
M
ELECTRICAL FEATURES
Nominal Current
7,5&13 A
Operating Voltage Ac V Rms Max
1300V AC/DC
Certificates
Accessories
Cable Tubes
Product Code: 939BSB3
Straight Tube
Product Code: 939RSB3Y
90° Tube
Backshell
Product Code: 939W881903
M85049/88-19W03
Product Code: 939UW19EMI
M85049/88D19W03
Product Code: 939UW19
Düz Arkalik
Product Code: M85049-38-19W
M85049/38-19W
