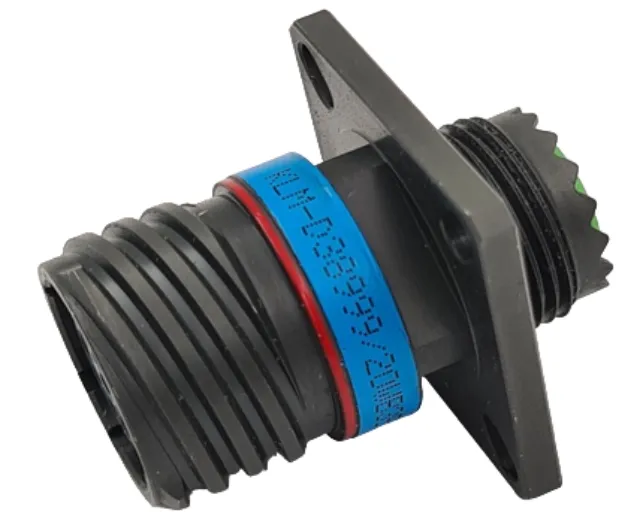

D38999/20WF30SE
Wall mount flange type receptacle
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
930WF30SE
Packing Unit
1 pcs.
Product Description
Wall mount flange type receptacle
Technical Information
PRODUCT FEATURES
Continuous Operating Temperature max.
175 °C
Continuous Operating Temperature min.
65 °C
Features
MIL-DTL-38999
Connector Type
Wall Mounted Socket
Housing Size
19(F)
Number Of Contacts
30 Ad.
Placement
F-30
Housing Material
Aluminium
Housing Color
Khaki Green
Housing Coating
Cadmium
Contact Type
Soket (29#20) (1#16)
Wire Gauge
24,22,20,18,16 AWG
Contact Material
Au/Cu
Ingress Protection
IP67
Sealing Material
Silicon
Emi Shielding
+
Mating Cycles
500
Polarization
E
Service Rating
I
ELECTRICAL FEATURES
Nominal Current
7,5&13 A
Operating Voltage Ac V Rms Max
1800V AC/DC
Certificates
Accessories
Crimping Tool
Product Code: M22520-1-01
M22520/1-01
Locator
Product Code: M22520-1-04
M22520/1-04
Insertion/Extraction Tool
Product Code: M81969-14-10
Takma / Insertion
Product Code: M81969-8-05
Takma / Insertion
Product Code: M81969-8-06
M81969/8-06
Product Code: M81969-8-07
M81969-8-07
Product Code: M81969-8-08
M81969-8-08
Product Code: M81969-14-03
M81969-14-03
Cable Tubes
Product Code: 939BSB3
Straight Tube
Product Code: 939RSB3Y
90° Tube
Dust Cap
Product Code: 933W19R
D38999/33W19R
Backshell
Product Code: 939W881903
M85049/88-19W03
Product Code: 939UW19EMI
M85049/88D19W03
Product Code: 939UW19
Düz Arkalik
Product Code: M85049-38-19W
M85049/38-19W
Contact
Product Code: M39029-56-351
M39029/56-351
Product Code: M39029-56-352
M39029/56-352
