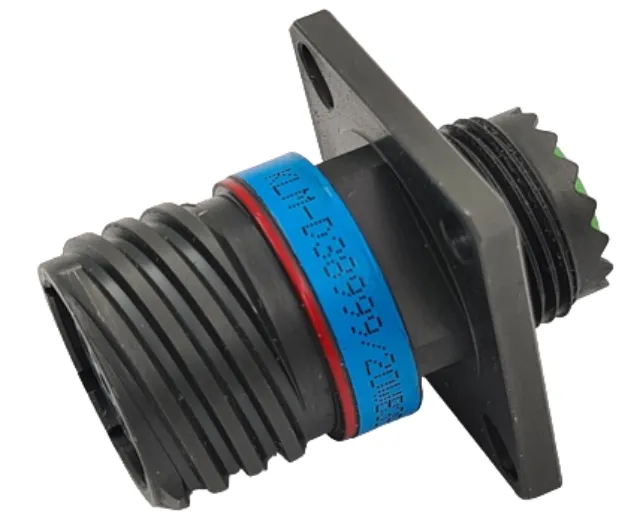

D38999/20WF11PB
Wall mount flange type receptacle
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
930WF11PB
Packing Unit
1 pcs.
Product Description
Wall mount flange type receptacle
Technical Information
PRODUCT SPECIFICATIONS
Continuous Operating Temperature Max.
175 °C
Continuous Operating Temperature Min.
65 °C
Features
MIL-DTL-38999
Connector Type
Wall Mounted Socket
Housing Size
19(F)
Number of Contacts
11 Ad.
Layout
F-11
Housing Material
Aluminium
Housing Colour
Khaki Green
Housing Coating
Cadmium
Contact Type
Pin (11#16)
Cable Diameter
20,18,16 AWG
Contact Material
Au/Cu
Sealing Protection
IP67
Sealing Material
Silicon
EMI Shielding
+
Mating Cycle Life
500
Polarisation
A
Service Rating
II
ELECTRICAL SPECIFICATIONS
Nominal Current
13 A
Operating Voltage (AC) Vrms (Max.)
2300V AC/DC
Certificates
Accessories
Crimping Tool
Product Code: M22520-1-01
M22520/1-01
Locator
Product Code: M22520-1-04
M22520/1-04
Contact
Product Code: M39029-58-364
M39029/58-364
Insertion/Extraction Tool
Product Code: M81969-8-07
M81969-8-07
Product Code: M81969-8-08
M81969-8-08
Product Code: M81969-14-03
M81969-14-03
Cable Tubes
Product Code: 939BSB3
Straight Tube
Product Code: 939RSB3Y
90° Tube
Dust Cap
Product Code: 933W19R
D38999/33W19R
Backshell
Product Code: 939W881903
M85049/88-19W03
Product Code: 939UW19EMI
M85049/88D19W03
Product Code: 939UW19
Düz Arkalik
Product Code: M85049-38-19W
M85049/38-19W
