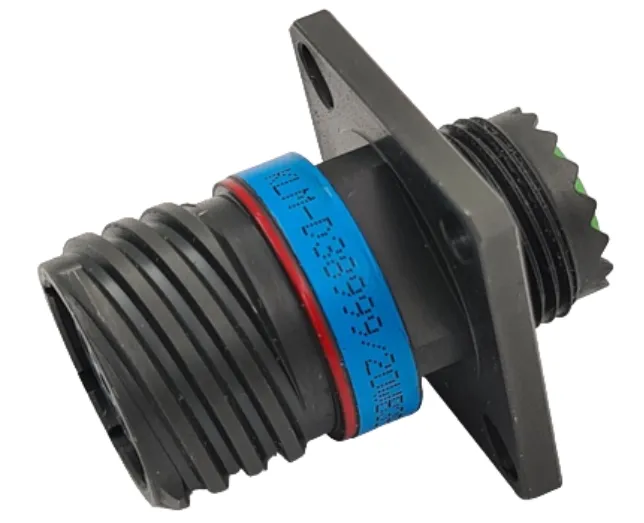

D38999/20WA98PN
Wall mount flange type receptacle
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
930WA98PN
Packing Unit
1 pcs.
Product Description
Wall mount flange type receptacle
Technical Information
PRODUCT SPECIFICATIONS
Continuous Operating Temperature Max.
175 °C
Continuous Operating Temperature Min.
65 °C
Features
MIL-DTL-38999
Connector Type
Wall Mounted Socket
Housing Size
9 (A)
Number of Contacts
3 Ad.
Layout
A-98
Housing Material
Aluminium
Housing Colour
Khaki Green
Housing Coating
Cadmium
Contact Type
Pin (3#20)
Cable Diameter
24,22,20 AWG
Contact Material
Au/Cu
Sealing Protection
IP67
Sealing Material
Silicon
EMI Shielding
+
Mating Cycle Life
500
Polarisation
N
Service Rating
M
ELECTRICAL SPECIFICATIONS
Nominal Current
7,5 A
Operating Voltage (AC) Vrms (Max.)
1800V AC/DC
Certificates
Accessories
Dust Cap
Product Code: 933W09R
D38999/33W09R
Backshell
Product Code: 939W880903
M85049/88-09W03
Product Code: 939UW09EMI
M85049/88D09W03
Product Code: 939UW09
D38999 UNI ARKALIK 09W03
Product Code: M85049/38-09W
M85049/38-09W
Cable Tubes
Product Code: 939BSB1
Straight Tube
Product Code: 939RSB1Y
90° Straight Tube
Contact
Product Code: M39029-58-363
M39029/58-363
Crimping Tool
Product Code: M22520-1-01
M22520/1-01
Locator
Product Code: M22520-1-04
M22520/1-04
Insertion/Extraction Tool
Product Code: M81969-14-10
Takma / Insertion
Product Code: M81969-8-05
Takma / Insertion
Product Code: M81969-8-06
M81969/8-06
