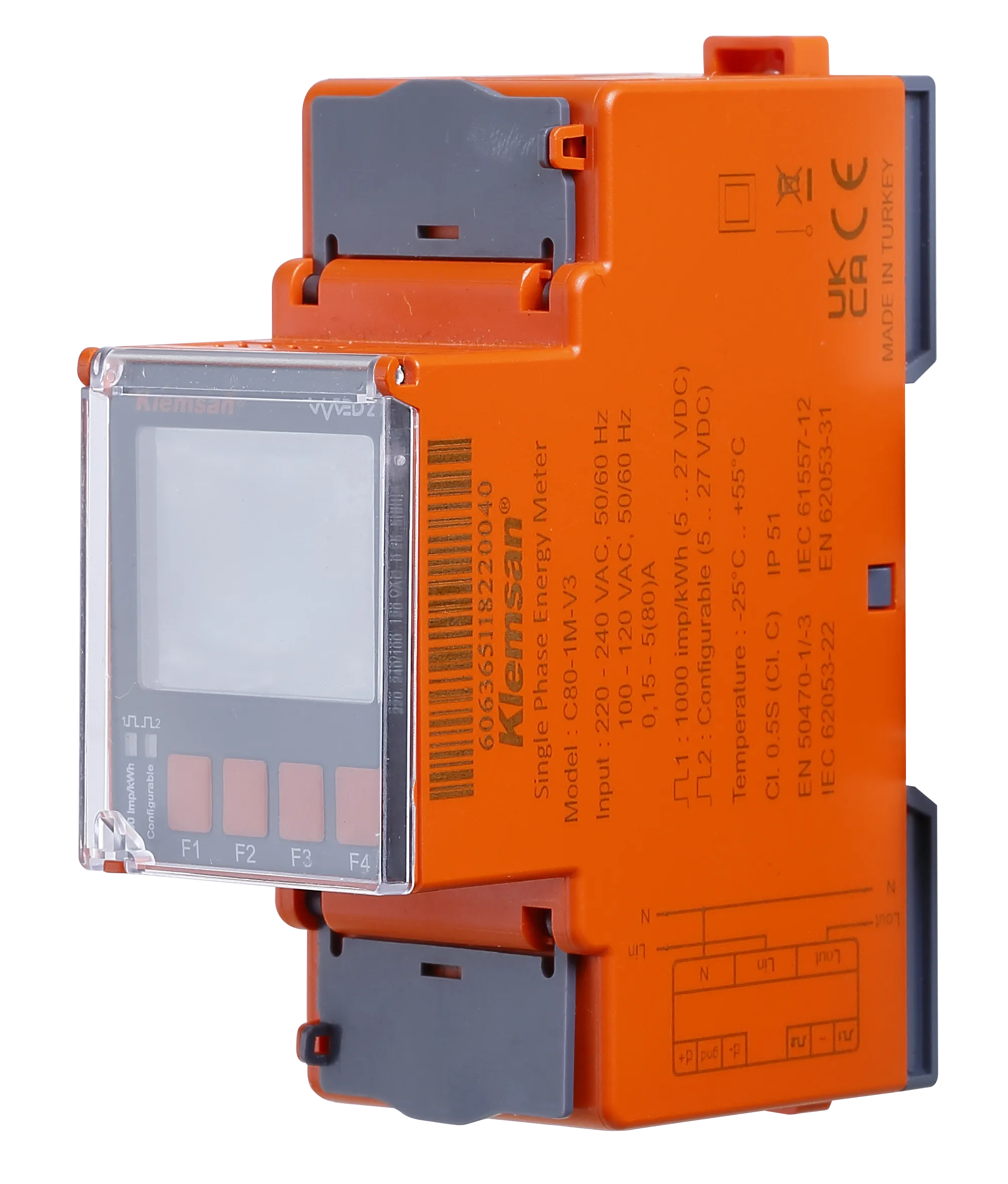

180-0M-O2
1Ø Energy Meter
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606374
Packing Unit
1 pcs.
Customs Tariff No.
903032009011
Weight per piece (inc. packing)
0.12 kg.
Product Description
1Ø Energy Meter
Technical Information
GENERAL
Connection Type
1P2W
Current Connection Type
Direkt Baglantili (45A ya kadar)
MECHANICAL SPECIFICATIONS
Weight (g)
120
Protection Class
IP20
Mounting Method
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
DIGITAL OUTPUT
Frequency
5-30 VDC
Number of Inputs
2 (Ayarlanabilir)
Switched Voltage Range
Transistor
Insulation
3750 Vrms
CURRENT MEASUREMENT INPUT
Measurement Range
0,15 .. 80A
ENERGY MEASUREMENT
Number of Tariffs
1
Number of Reactive Measurement Quadrants
2
Energy Measurement Type
Import & Export kWh-kVArh
VOLTAGE MEASUREMENT INPUT
L-N Measurement Range
100-300V AC
L-L Measurement Range
-
POWER QUALITY MEASUREMENTS
Harmonic Measurement (Current and Voltage)
31
THDi
+
THDv
+
BASIC ELECTRICAL MEASUREMENTS
Current
+
Voltage
+
Frequency
+
Active Power
+
Reactive Power
+
Apparent Power
+
MEASUREMENT CLASS
IEC 62053-21
Class 1
MEASUREMENT
Max./Min. Data
+
LED PULSE OUTPUT
kWh
+
kvarh
+
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
Certificates
CE
UKCA
UL
